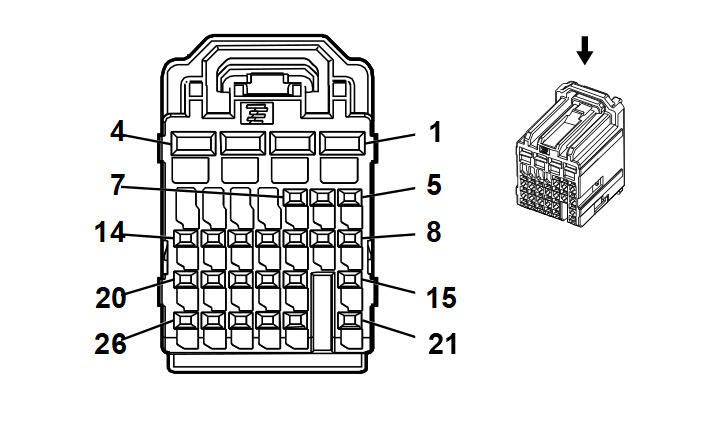

K9 Body Control Module X5
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13826916
- Service Connector: 13576034
- Description: 26-Way F 0.64, 2.8 Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13582326 |
J-35616-35 (VT) |
J-38125-553 |
8100-4444 |
Sumitomo 22 |
2 |
A |
| III |
19366999 |
J-35616-35 (VT) |
J-38125-553 |
8100-4443 |
Sumitomo 22 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/BU |
18 |
Left Rear Stop/Turn Lamp Control |
III |
- |
| 2 |
0.5 |
BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
III |
- |
| 3 |
0.75 |
RD/GY |
4840 |
Battery Positive Voltage |
II |
- |
| 4 |
0.75 |
RD/WH |
4740 |
Battery Positive Voltage |
II |
- |
| 5 |
0.5 |
GY/BU |
7538 |
Left Front DRL Control |
I |
- |
| 6 |
0.35 |
BK/VT |
5077 |
Current Sensor Low Reference |
I |
- |
| 7 |
0.5 |
BN/GN |
19 |
Right Rear Stop/Turn Lamp Control |
I |
- |
| 8 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
GY/YE |
6188 |
Lift Glass/Rear Compartment Lid Motor Release Control |
I |
- |
| 12 |
0.35 |
WH/BU |
6311 |
Cruise/ETC/TCC Brake Signal |
I |
- |
| 13 |
0.35 |
BU |
45 |
Park Lamp Relay Control |
I |
- |
| 14 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
BN/VT |
1969 |
Headlamp High Beam Relay Control |
I |
- |
| 19 |
0.35 |
BN/WH |
28 |
Horn Relay Control |
I |
- |
| 20 |
0.13 |
BU |
4672 |
Dome Lamp Off Indicator Control |
I |
- |
| 21 |
0.35 |
WH |
1638 |
Left Rear Heated Seat High Indicator Control |
I |
- |
| 22 |
0.35 |
BN/WH |
1635 |
Right Rear Heated Seat High Indicator Control |
I |
- |
| 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.35 |
WH/VT |
860 |
Front Windshield Wiper Switch High Signal |
I |
- |
| 25 - 26 |
- |
- |
- |
Not Occupied |
- |
- |
