K9 Body Control Module X7
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

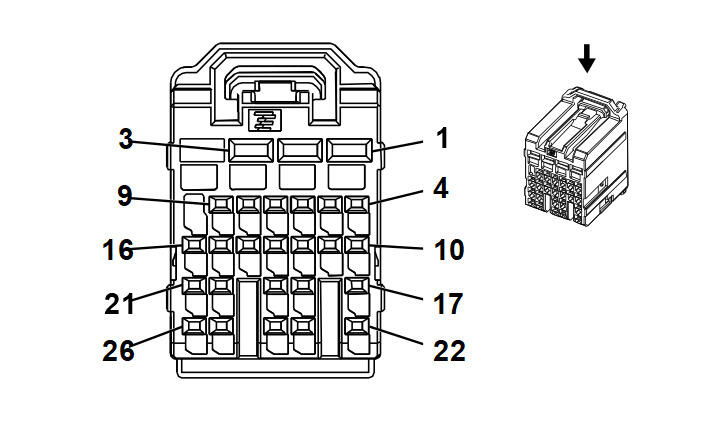

Connector Part Information
- Harness Type: Body
- OEM Connector: 13826915
- Service Connector: 13576036
- Description: 26-Way F 0.64, 2.8 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575577 |
J-35616-35 (VT) |
J-38125-553 |
8100-4443 |
Sumitomo 22 |
E |
A |
| II |
13582297 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13582326 |
J-35616-35 (VT) |
J-38125-553 |
8100-4444 |
Sumitomo 22 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
157 |
Interior Lamp Control |
I |
- |
| 2 |
0.5 |
GN/WH |
24 |
Backup Lamp Control |
III |
- |
| 3 |
0.35 |
WH/BN |
6815 |
Inadvertent Power Control |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.13 |
VT |
7553 |
Park Lock Solenoid Control |
II |
- |
| 7 |
0.5 |
VT/GY |
709 |
Left Park Lamp Control |
II |
- |
| 8 |
0.5 |
BU/BN |
7539 |
Right Front DRL Control |
II |
- |
| 9 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
II |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
BN/GN |
1634 |
Right Rear Heated Seat Switch Signal |
II |
- |
| 12 |
0.35 |
YE/GN |
1771 |
Left Rear Door Lock Motor Status |
II |
- |
| 13 |
0.13 |
WH |
5905 |
Key Capture/Column Lock Shift Position Signal |
II |
- |
| 14 |
0.13 |
WH |
781 |
Driver Door Lock Switch Unlock Signal |
II |
- |
| 15 |
0.13 |
GN |
328 |
Interior Lamp Defeat Switch Signal |
II |
- |
| 16 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
YE/BU |
1772 |
Right Rear Door Lock Motor Status |
II |
- |
| 19 |
0.13 |
GY |
156 |
Courtesy Lamp Switch Signal |
II |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
WH/BK |
7544 |
Right Rear Turn Lamp Feedback Signal |
II |
- |
| 22 - 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.35 |
BN/WH |
1637 |
Left Rear Heated Seat Switch Signal |
II |
- |
| 25 |
0.35 |
BN/YE |
780 |
Driver Door Lock Switch Lock Signal |
II |
- |
| 26 |
- |
- |
- |
Not Occupied |
- |
- |
