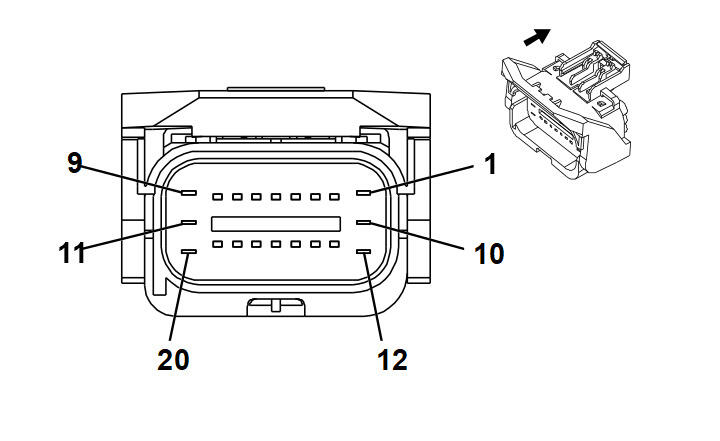

K47 Rear Differential Clutch Control Module X1 (F48)
WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Rear Chassis
- OEM Connector: 13586802
- Service Connector: 19354741
- Description: 20-Way F 1.5, 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13576371 |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13579769 |
J-35616-4A (PU) |
J-38125-11A |
7116-4150-02 |
Yazaki 9 |
E |
1 |
| III |
13579770 |
J-35616-4A (PU) |
J-38125-11A |
7116-4152-02 |
Yazaki 9 |
A |
5 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BN/GN |
3945 |
All Wheel Drive Power Transfer Motor Control B |
III |
F48 |
| 2 |
0.5 |
GY/GN |
1561 |
AWD Indicator Control |
I |
F48 |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
PU/GY |
6106 |
High Speed GMLAN Serial Data (-) 2 |
I |
F48 |
| 6 |
0.35 |
BK/YE |
6105 |
High Speed GMLAN Serial Data (+) 2 |
I |
F48 |
| 7 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
F48 |
| 8 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
F48 |
| 9 |
2.5 |
BK |
2150 |
Ground |
III |
F48 |
| 10 |
0.5 |
RD/PU |
1940 |
Battery Positive Voltage |
II |
- |
| 11 |
0.5 |
WH/BU |
5986 |
Serial Data Communication Enable |
II |
F48 |
| 12 |
2.5 |
PU/BN |
3944 |
All Wheel Drive Power Transfer Motor Control A |
III |
- |
| 13 |
0.5 |
BK/PU |
3846 |
All Wheel Drive Power Transfer Unit Position Sensor Low Reference |
I |
F48 |
| 14 |
0.5 |
GN/BN |
3848 |
All Wheel Drive Power Transfer Unit Position Sensor Signal |
I |
F48 |
| 15 |
0.5 |
WH/RD |
3847 |
All Wheel Drive Power Transfer Unit Position Sensor Voltage Reference |
I |
F48 |
| 16 |
0.35 |
BN/WH |
6106 |
High Speed GMLAN Serial Data (-) 2 |
I |
F48 |
| 17 |
0.35 |
BU/YE |
6105 |
High Speed GMLAN Serial Data (+) 2 |
I |
F48 |
| 18 |
0.35 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
F48 |
| 19 |
0.35 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
F48 |
| 20 |
2.5 |
RD/BU |
1542 |
Battery Positive Voltage |
III |
F48 |
