K77 Remote Control Door Lock Receiver
WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

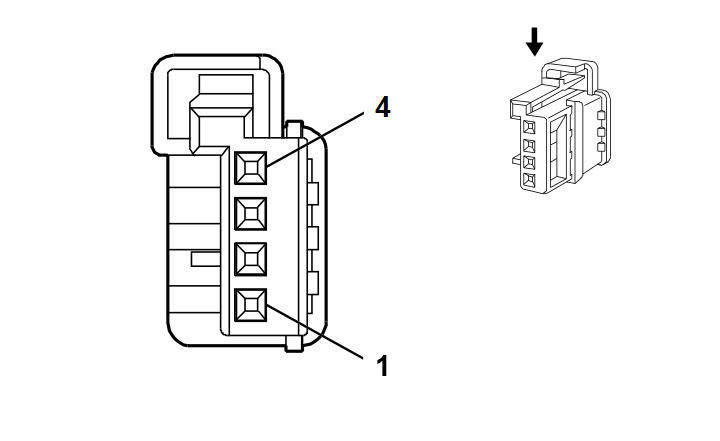

Connector Part Information
- Harness Type: Body
- OEM Connector: 13271140
- Service Connector: 13316147
- Description: 4-Way F 0.64 Micro-Quadlock Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
3273 |
Remote Function Actuator Low Reference |
I |
- |
| 2 |
0.35 |
YE/GN |
3274 |
Remote Function Actuator Transmit Signal |
I |
- |
| 3 |
0.35 |
BU/WH |
3275 |
Remote Function Actuator Receive Signal |
I |
- |
| 4 |
0.35 |
GY/WH |
3272 |
Remote Function Actuator Control |
I |
- |
