T22 Mobile Device Wireless Charger Module (CJ4)
WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

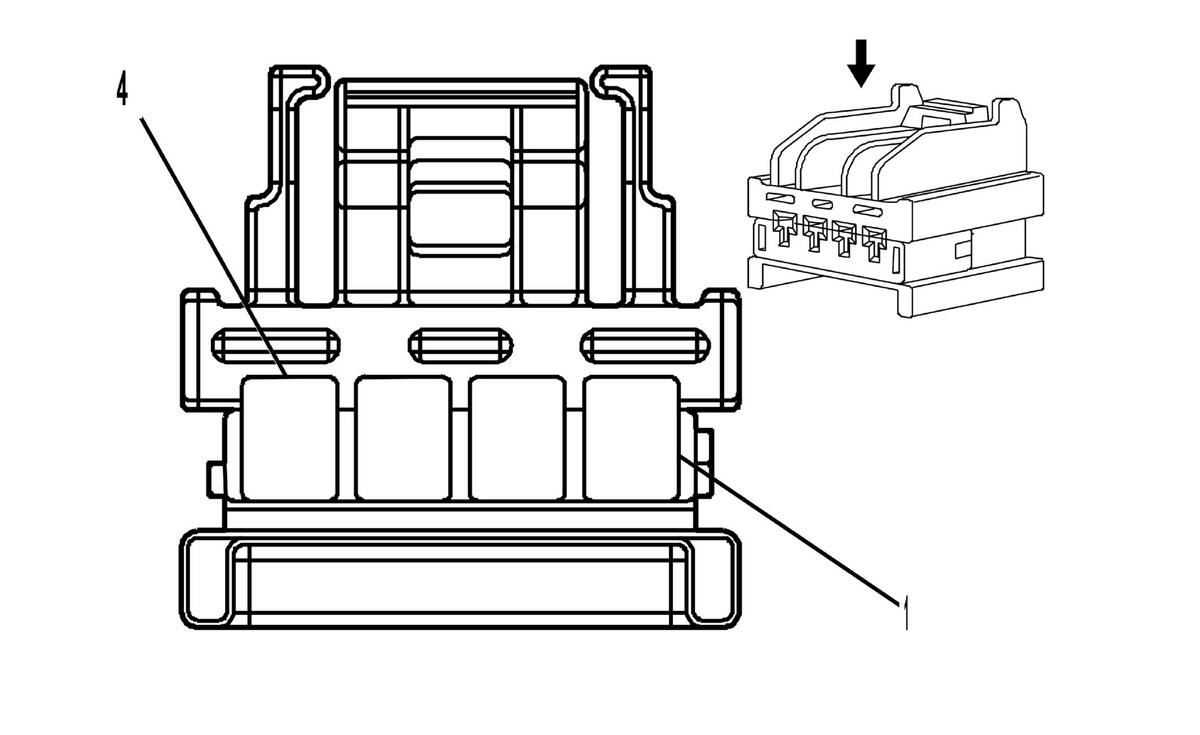

Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 15193796
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/BK |
2211 |
Rear Blower Motor Speed Control |
I |
CJ4 |
| 2 |
1 |
RD/GY |
1740 |
Battery Positive Voltage |
I |
CJ4 |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
1 |
BK |
1450 |
Ground |
I |
CJ4 |
