Radio Bracket Replacement

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

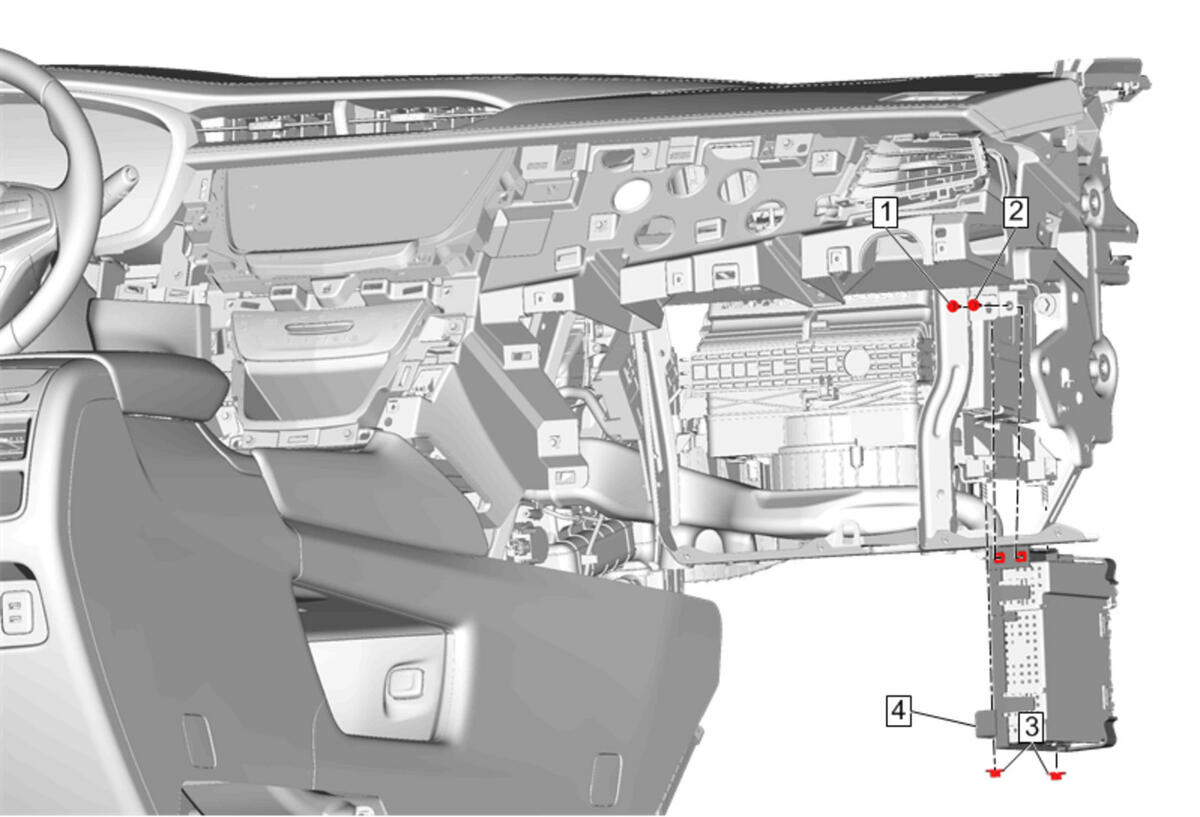

Callout	Component Name
Preliminary Procedures Instrument Panel Compartment Replacement Instrument Panel Insulator Replacement - Right Side
1	Radio Bracket Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bracket Bolt Tighten 2.5 N.m (22 lb in)
3	Radio Bracket Nut[2x] Tighten 9 N.m (80 lb in)
4	Radio Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.
