Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

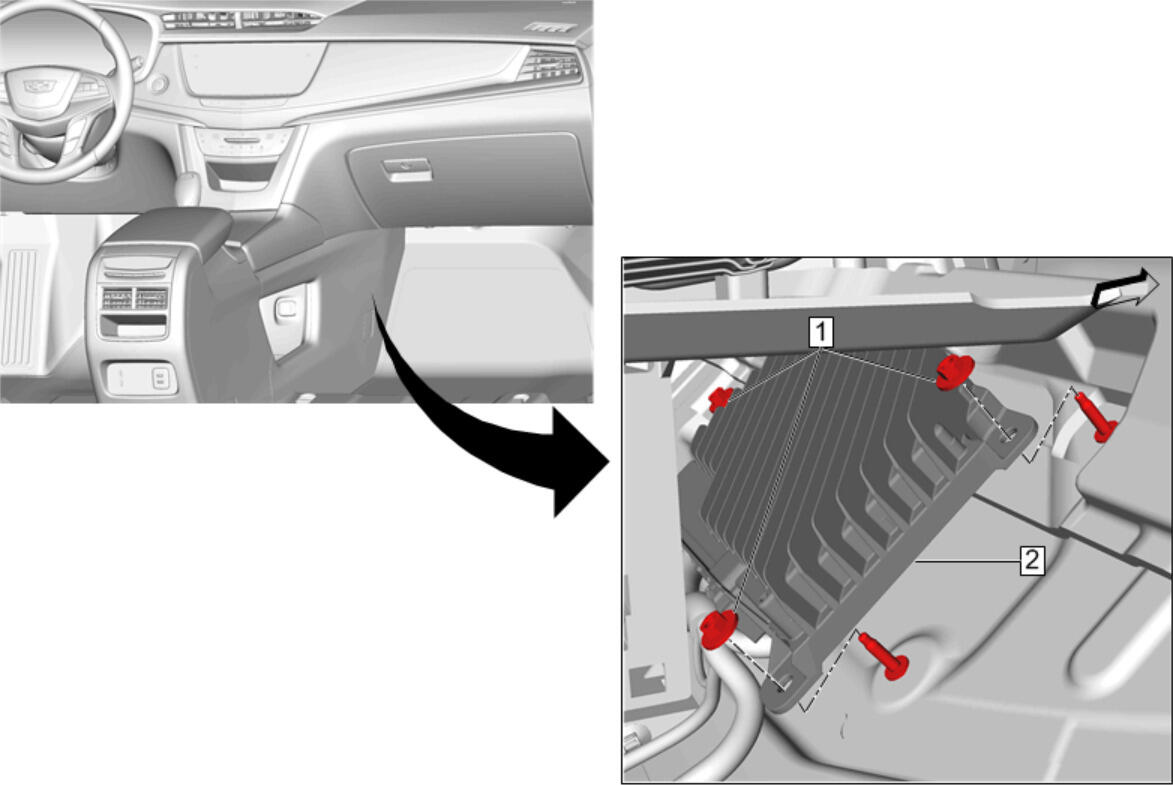

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side
1	Radio Speaker Amplifier Nut[3x] CAUTION: Fastener Caution Procedure Reposition the front right upper portion of the carpet nearest the amplifier in order to access the retaining nuts. Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedures

Front Floor Console Extension Panel Replacement - Left Side
Front Floor Console Extension Panel Replacement - Right Side

Radio Speaker Amplifier Nut[3x]

CAUTION:

Fastener Caution

Procedure
Reposition the front right upper portion of the carpet nearest the amplifier in order to access the retaining nuts.
Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure:Control Module References
