Human Machine Interface Control Module Bypass Module Bracket Replacement

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Instrument Panel Compartment Replacement

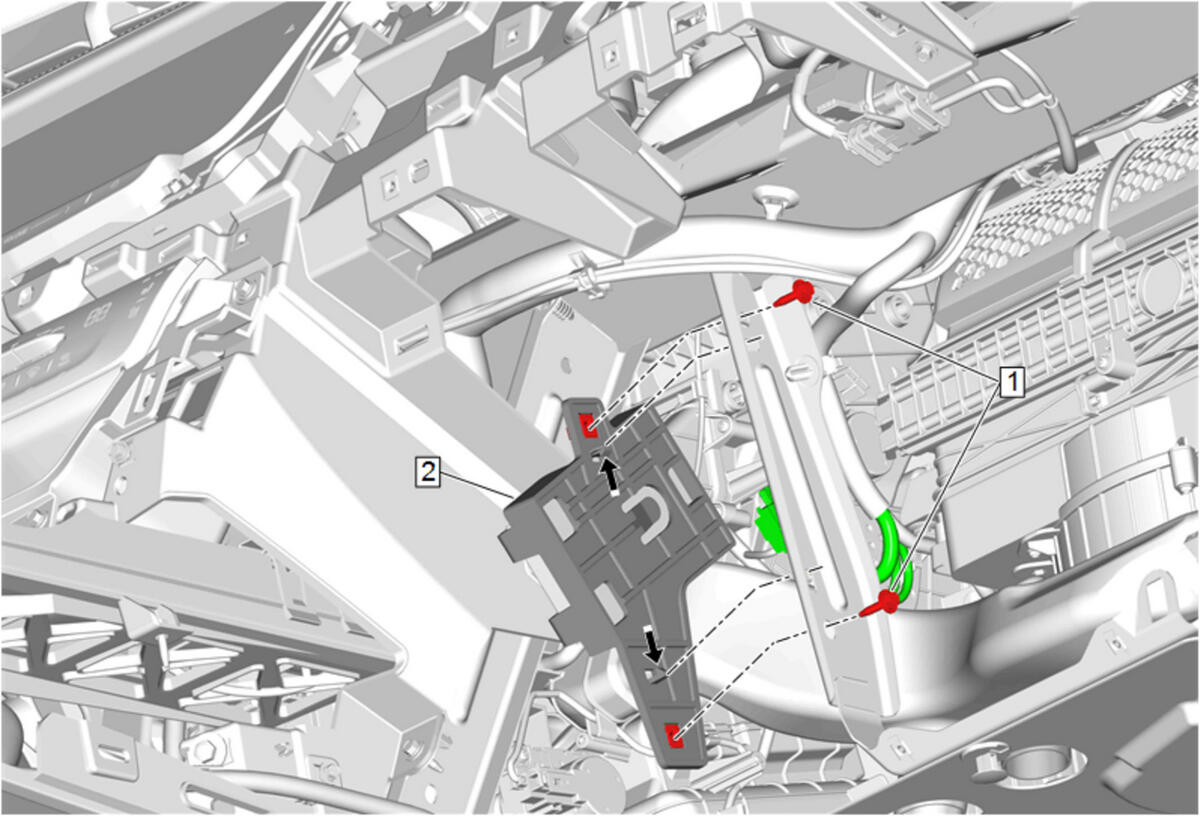

1	Human Machine Interface Control Module Bypass Module Bracket Bolt [2x] CAUTION: Fastener Caution Tighten 2.5N.m (22 lb in)
2	Human Machine Interface Control Module Bypass Module Bracket Procedure Release the retaining tabs. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Instrument Panel Compartment Replacement

Human Machine Interface Control Module Bypass Module Bracket Bolt [2x]

CAUTION:

Fastener Caution

Tighten
2.5N.m (22 lb in)

Human Machine Interface Control Module Bypass Module Bracket

Procedure

Release the retaining tabs.
Disconnect the electrical connectors.
Transfer components as necessary.
