Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Instrument Panel Insulator Replacement - Left Side

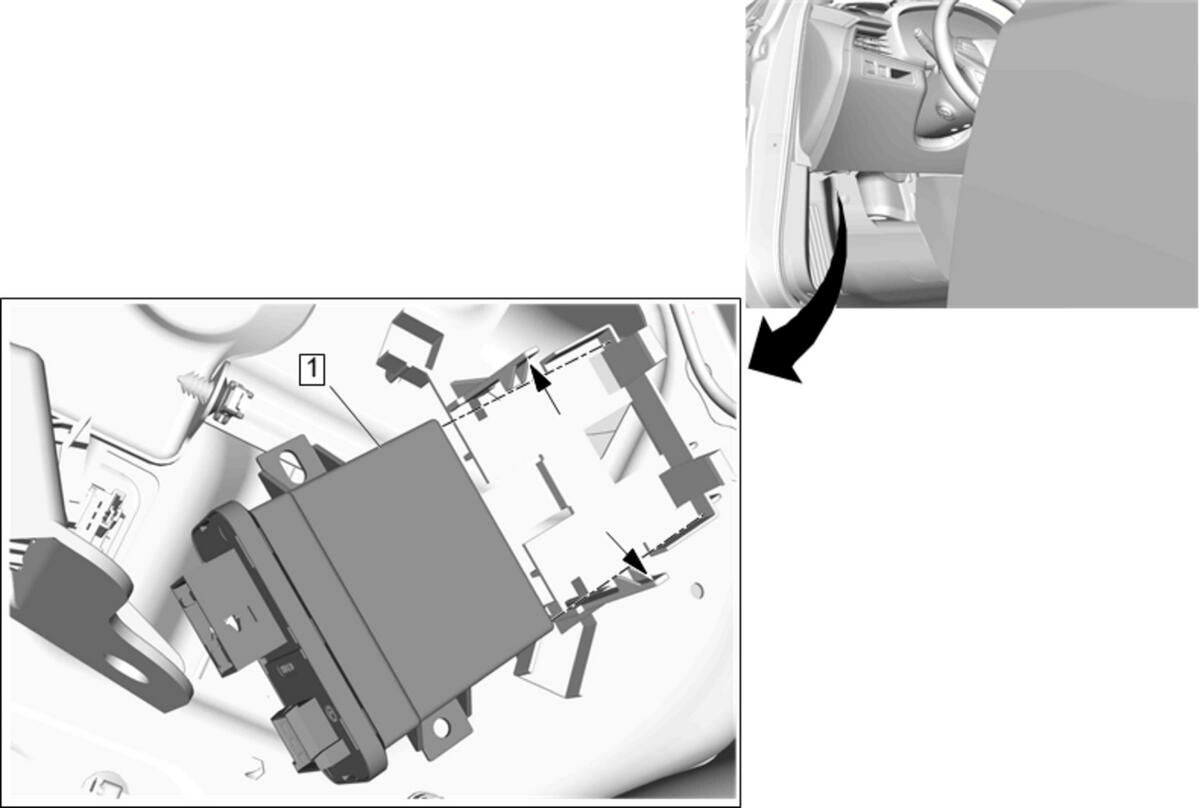

1	Headlamp Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Instrument Panel Insulator Replacement - Left Side

Headlamp Control Module

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
