Steering Column Upper Trim Cover Replacement

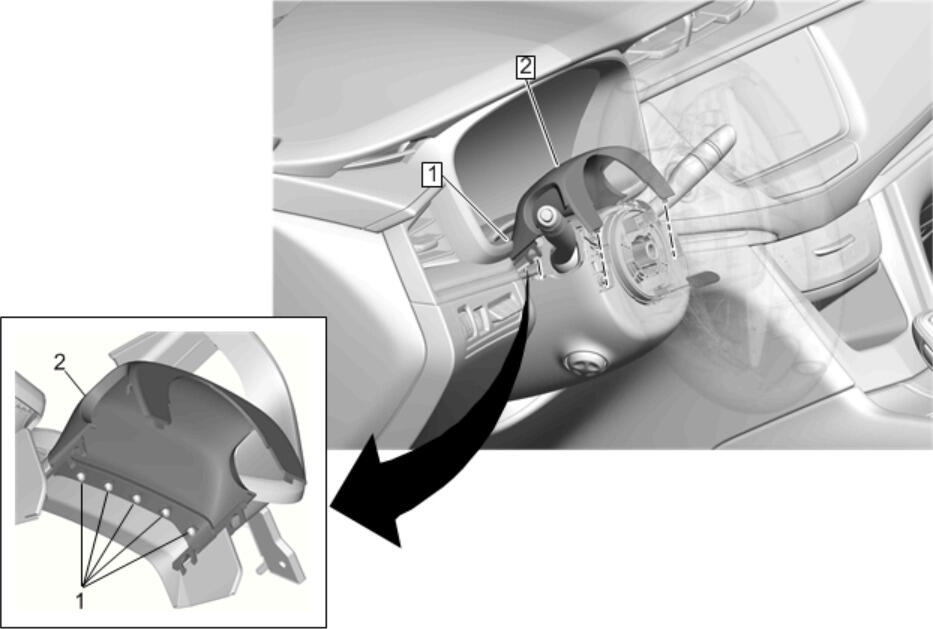

GM4276414Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Steering Column Housing Cover Retainer [6x]

Procedure

  1. Rotate the steering wheel to access the tabs.
  2. Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover.
  3. Reposition the upper trim cover to access and release the tabs on the bottom side of the steering column housing cover.
2 Steering Column Upper Trim Cover
