Preliminary Procedure
Steering Wheel Airbag Replacement |
| 1 |
Steering Wheel Bolt Procedure
- Clean the threads of the bolt and mating threads with denatured alcohol or equivalent and allow to dry.
- Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers
Tighten
45 N.m (33 lb ft) |
| 2 |

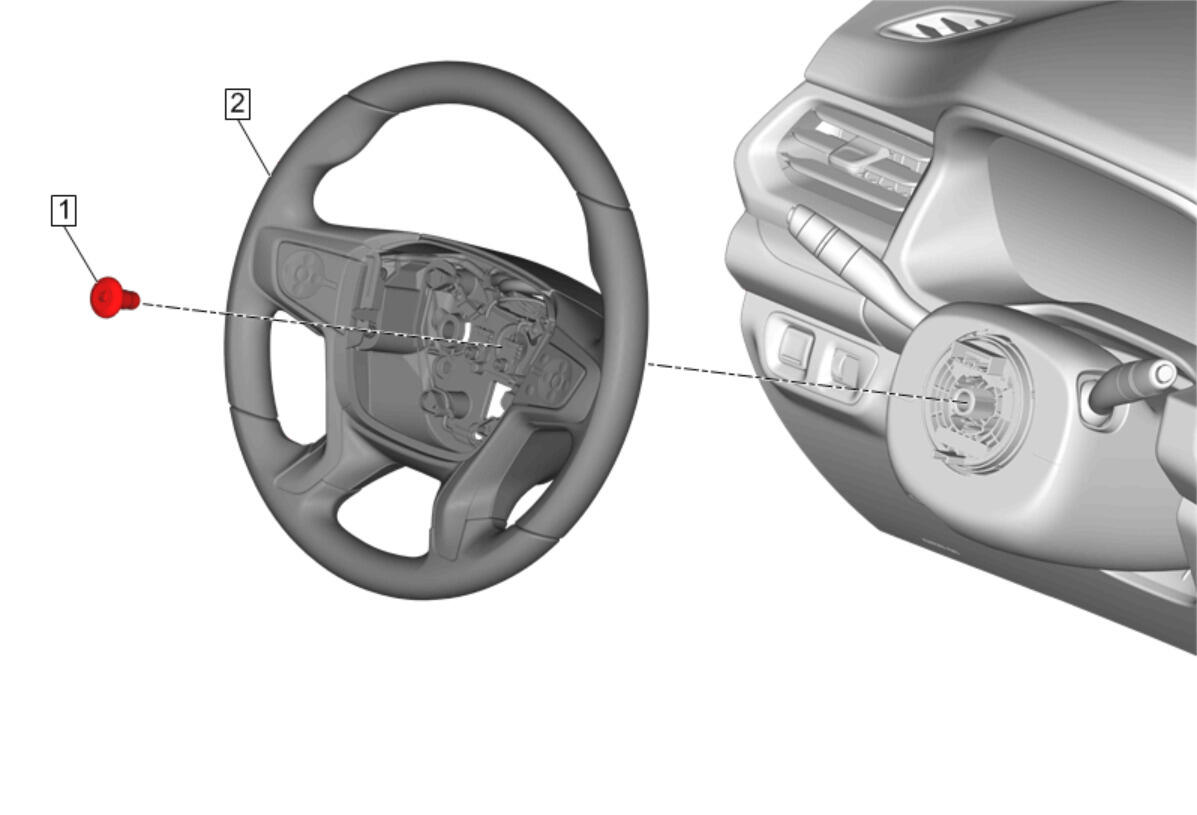

Steering Wheel Procedure
- Disconnect the electrical connectors.
- Install the steering wheel bolt until 2 to 3 threads are engaged.
- Wiggle the steering wheel until the wheel disengages completely.
- Steering Wheel Bolt - Remove
- Steering Wheel - Remove
- Transfer components as necessary.
|
