Installation Procedure

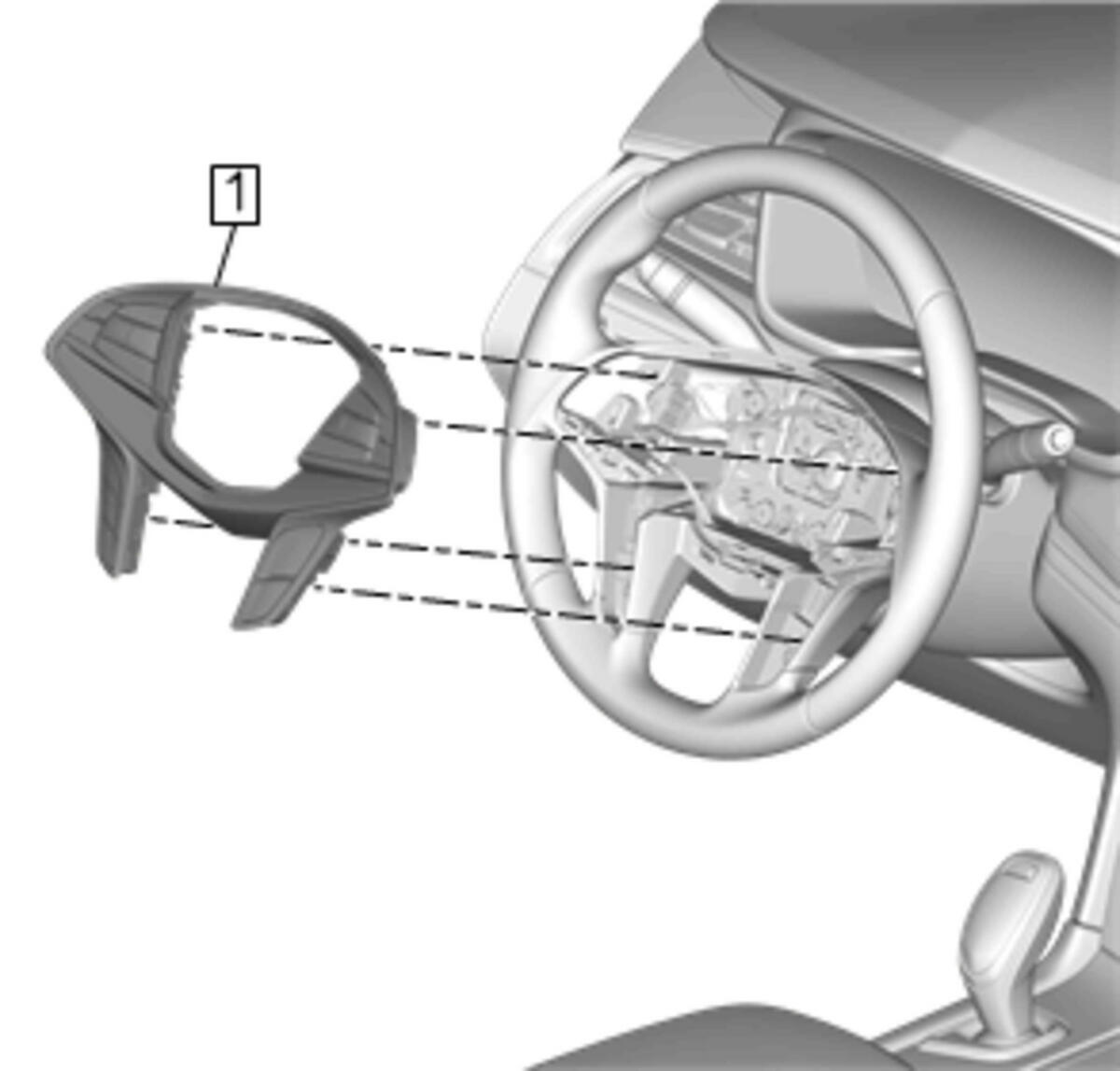

  1. GM4260536Courtesy of GENERAL MOTORS COMPANY

    Perform the following steps to install the steering wheel spoke cover (1) :

    1. Connect the electrical connectors.
    2. Secure the steering wheel spoke cover and cruise control and radio control switches to the steering wheel.

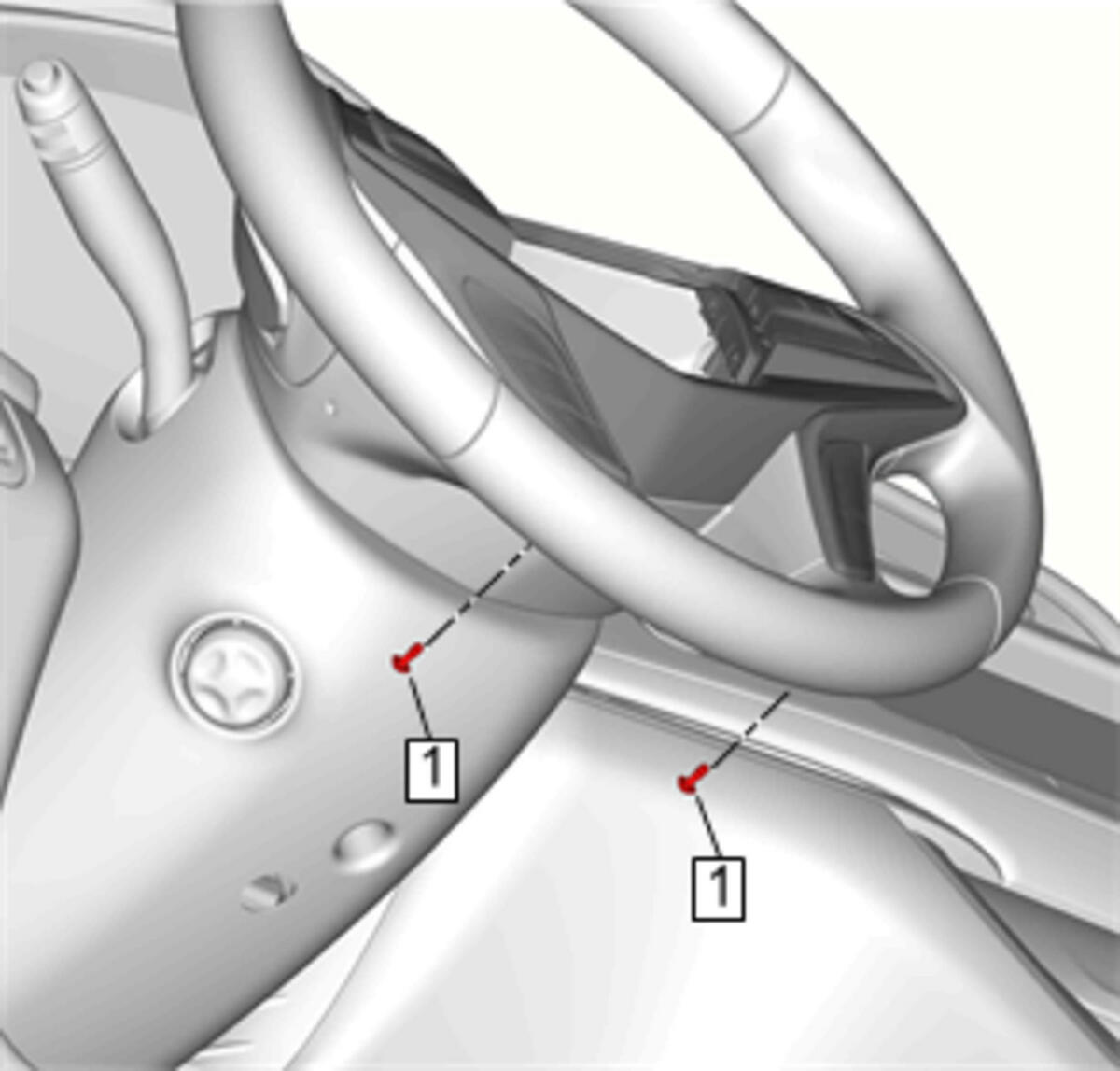

  2. GM4260530Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Wheel Spoke Cover Fastener (1) - Install and tighten [2x] 1 N.m (9 lb in)

  3. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
