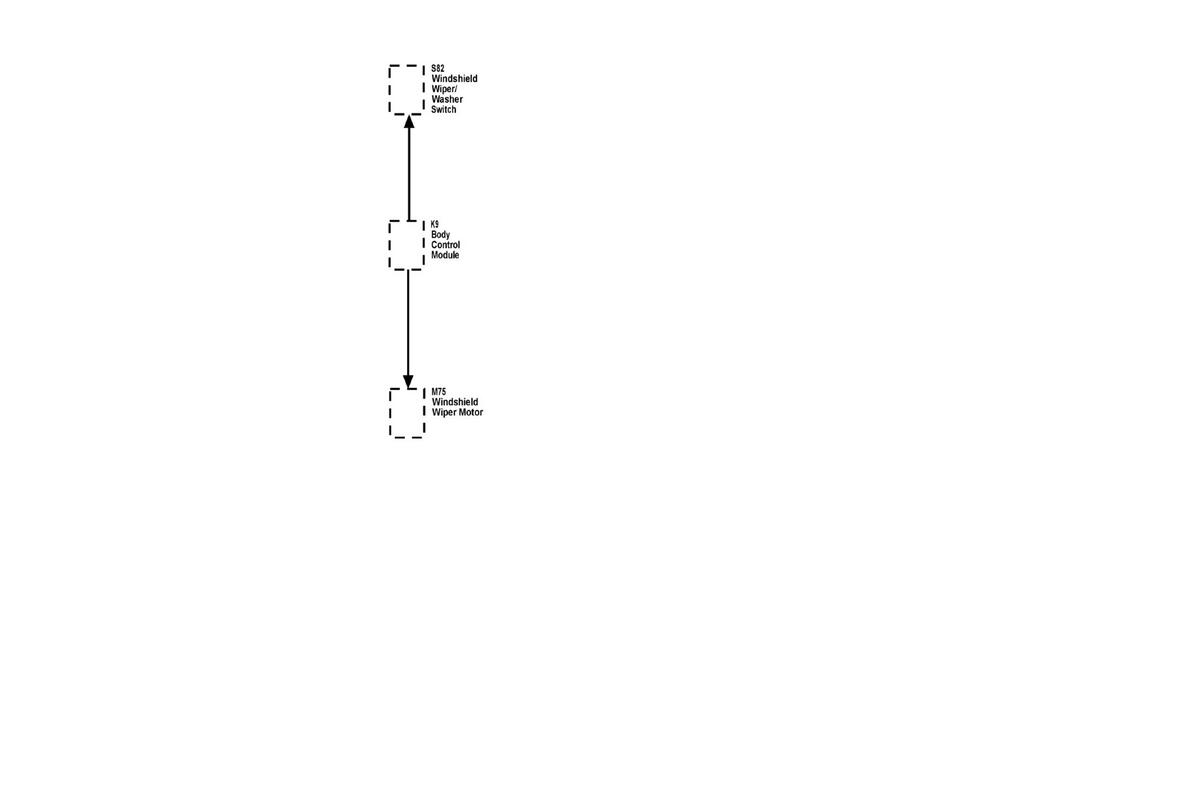

Front Wiper Block Diagram

GM3460729Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
S82 S82 Windshield Wiper/Washer Switch
K9 K9 Body Control Module
M75 M75 Windshield Wiper Motor
