Automatic Transmission Electronic Components (M7U/M7W)

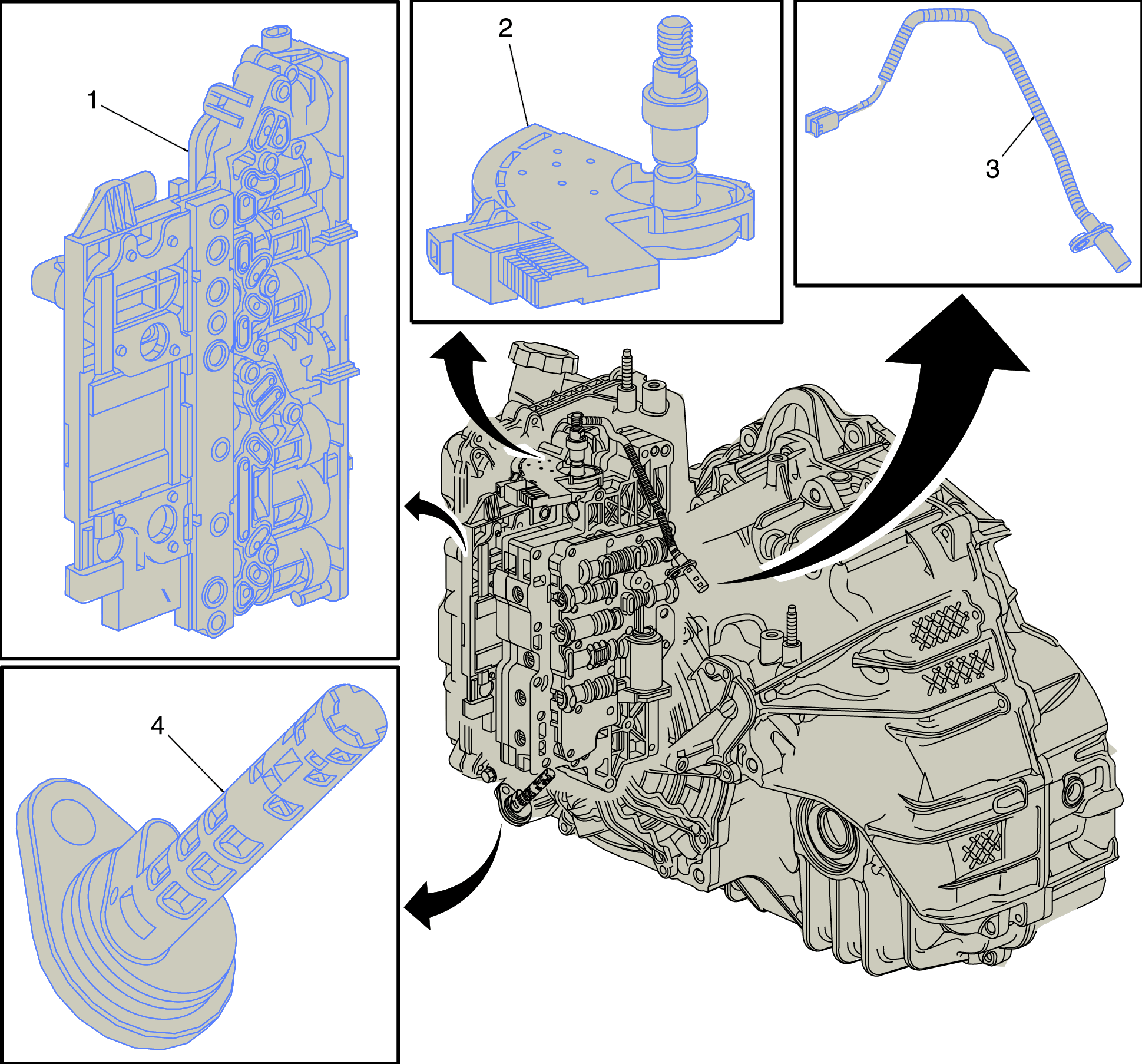

GM3828241Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Electronic Components (M7U/M7W)

Items
1. Q8 Control Solenoid Valve Assembly
2. B15 Transmission Internal Mode Switch
3. B14A Transmission Output Shaft Speed Sensor
4. B14C Transmission Input Shaft Speed Sensor
