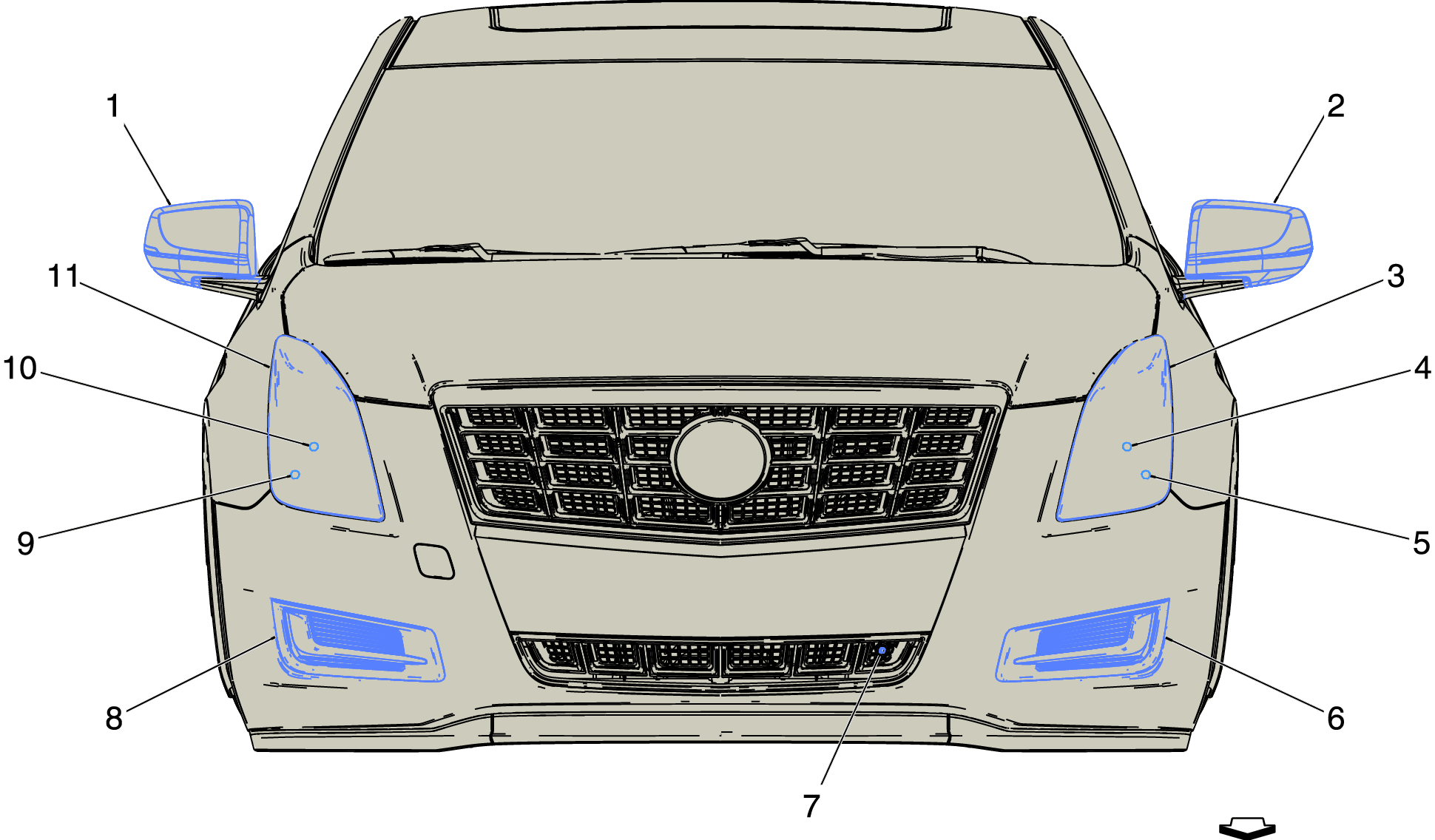

Front View of the Vehicle
Front View of the Vehicle
| Items |
|---|
| 1. A9B Outside Rearview Mirror - Passenger |
| 2. A9A Outside Rearview Mirror - Driver |
| 3. E13LA Headlamp Assembly - Left E13LA Headlamp Assembly - Left (-CZ2) , or E13LA Headlamp Assembly - Left (CZ2) |
| 4. E4E Headlamp - Left High Beam (T4F) |
| 5. E4C Daytime Running Lamp - Left (T4F) E4C Daytime Running Lamp - Left |
| 6. E4CA Daytime Running Lamp - Auxiliary Left (9H8) E4CA Daytime Running Lamp - Auxiliary Left (-T87-CZ2) , or E4CA Daytime Running Lamp - Auxiliary Left (CZ2) , or E4CA Daytime Running Lamp - Auxiliary Left (T87-CZ2) |
| 7. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor (-CZ2) |
| 8. E4DA Daytime Running Lamp - Auxiliary Right (9H8) E4DA Daytime Running Lamp - Auxiliary Right (-T87-CZ2) |
| 9. E4D Daytime Running Lamp - Right (T4F) E4D Daytime Running Lamp - Right |
| 10. E4F Headlamp - Right High Beam (T4F) |
| 11. E13RA Headlamp Assembly - Right E13RA Headlamp Assembly - Right (-CZ2) , or E13RA Headlamp Assembly - Right (CZ2) |
