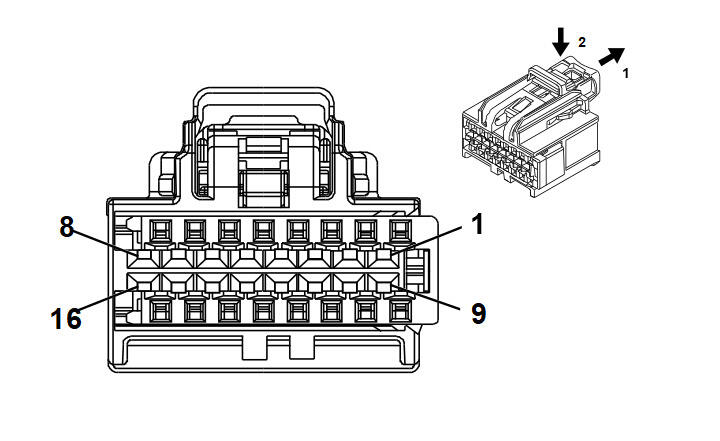

K26 Headlamp Control Module

GM4256181

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Harness Type: Body
OEM Connector: 33104226
Service Connector: 13519740
Description: 16-Way F 0.64 OCS Series (BN)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	84619127	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
I	84619127	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	WH/BU	5986	Serial Data Communication Enable	I	-
2	0.5	WH/RD	2165	Automatic Level Control Position Sensor 5V Reference	I	-
3	0.5	BN	2184	Automatic Level Control Position Sensor Signal	I	-
4	0.5	BK/BN	2185	Automatic Level Control Position Sensor Low Reference	I	-
5	-	-	-	Not Occupied	-	-
6	0.5	BK	850	Ground	I	-
7	-	WH/GY	3936	High Speed GMLAN Serial Data (-) 8	I	-
8	- 0.5	WH/GY WH	3936 2501	High Speed GMLAN Serial Data (-) 8 High Speed GMLAN Serial Data (-) 1	I I	UGN/UVZ -UGN/UVZ
9	0.35	RD/YE	740	Battery Positive Voltage	I	-
10	0.5	WH/RD	2165	Automatic Level Control Position Sensor 5V Reference	I	-
11	0.5	BN/WH	7525	Front Axle Level Sensor Signal	I	-
12	0.5	BK/BN	2185	Automatic Level Control Position Sensor Low Reference	I	-
13	0.35	GN/BN	7529	Local Interconnect Network Serial Data Bus 7	I	-
14	-	-	-	Not Occupied	-	-
15	-	BU/GY	3935	High Speed GMLAN Serial Data (+) 8	I	-
16	- 0.5	BU/GY BU	3935 2500	High Speed GMLAN Serial Data (+) 8 High Speed GMLAN Serial Data (+) 1	I I	UGN/UVZ -UGN/UVZ
