Remote Function System Wiring Schematics
>>
Garage Door Opener
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

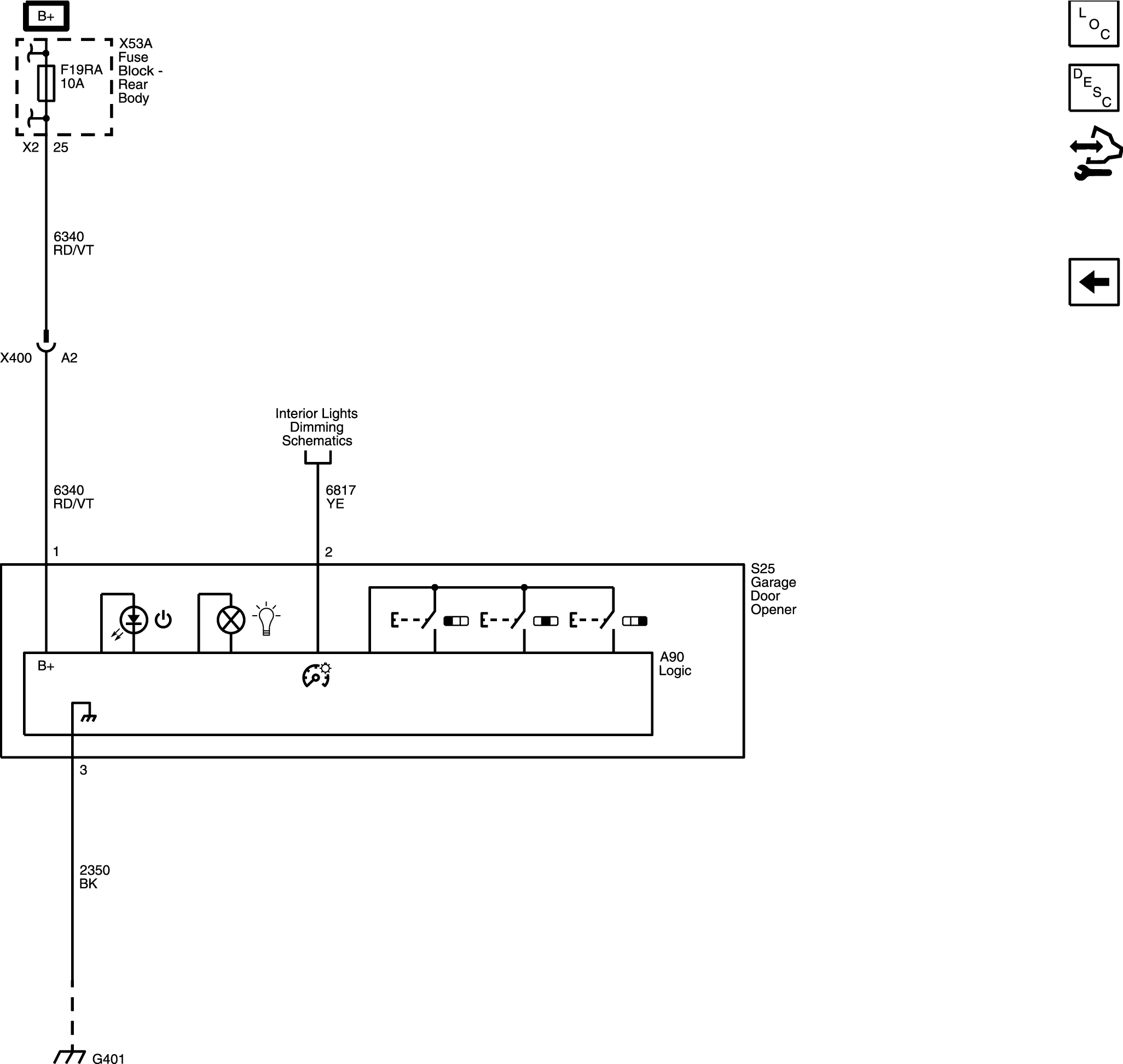

Garage Door Opener
Courtesy of GENERAL MOTORS COMPANY
