Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

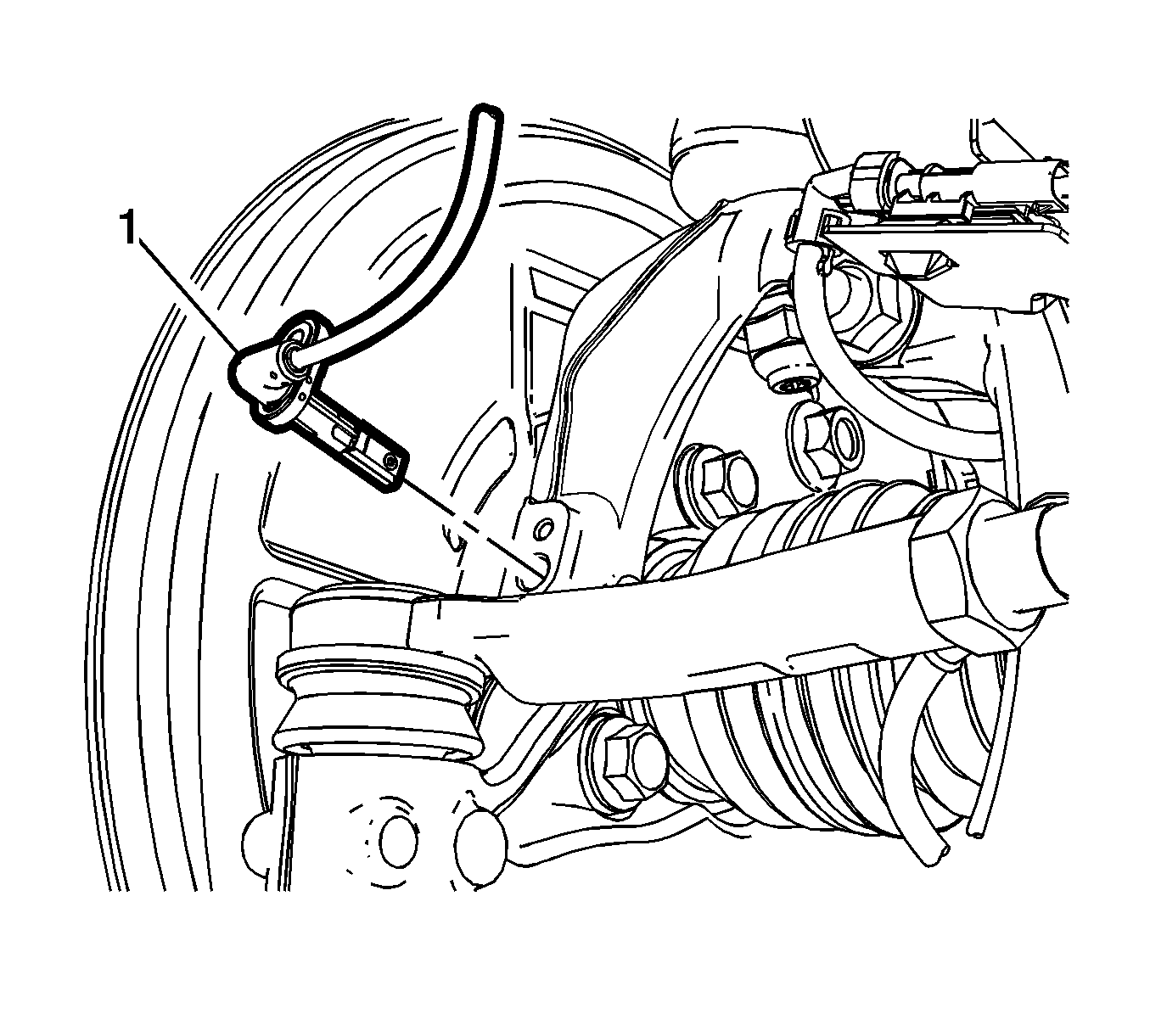

Install the wheel speed sensor (1) to the steering knuckle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

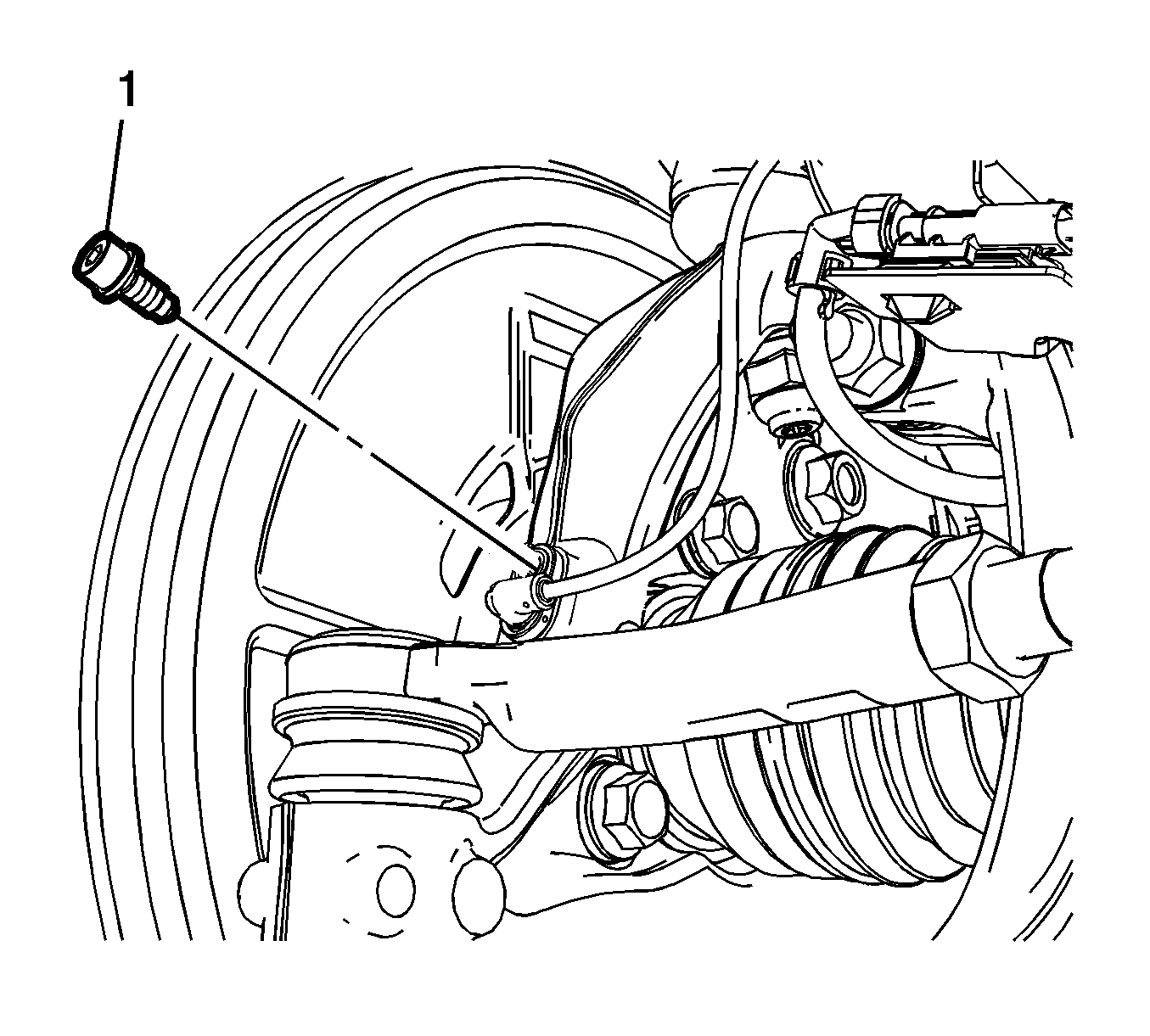

Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

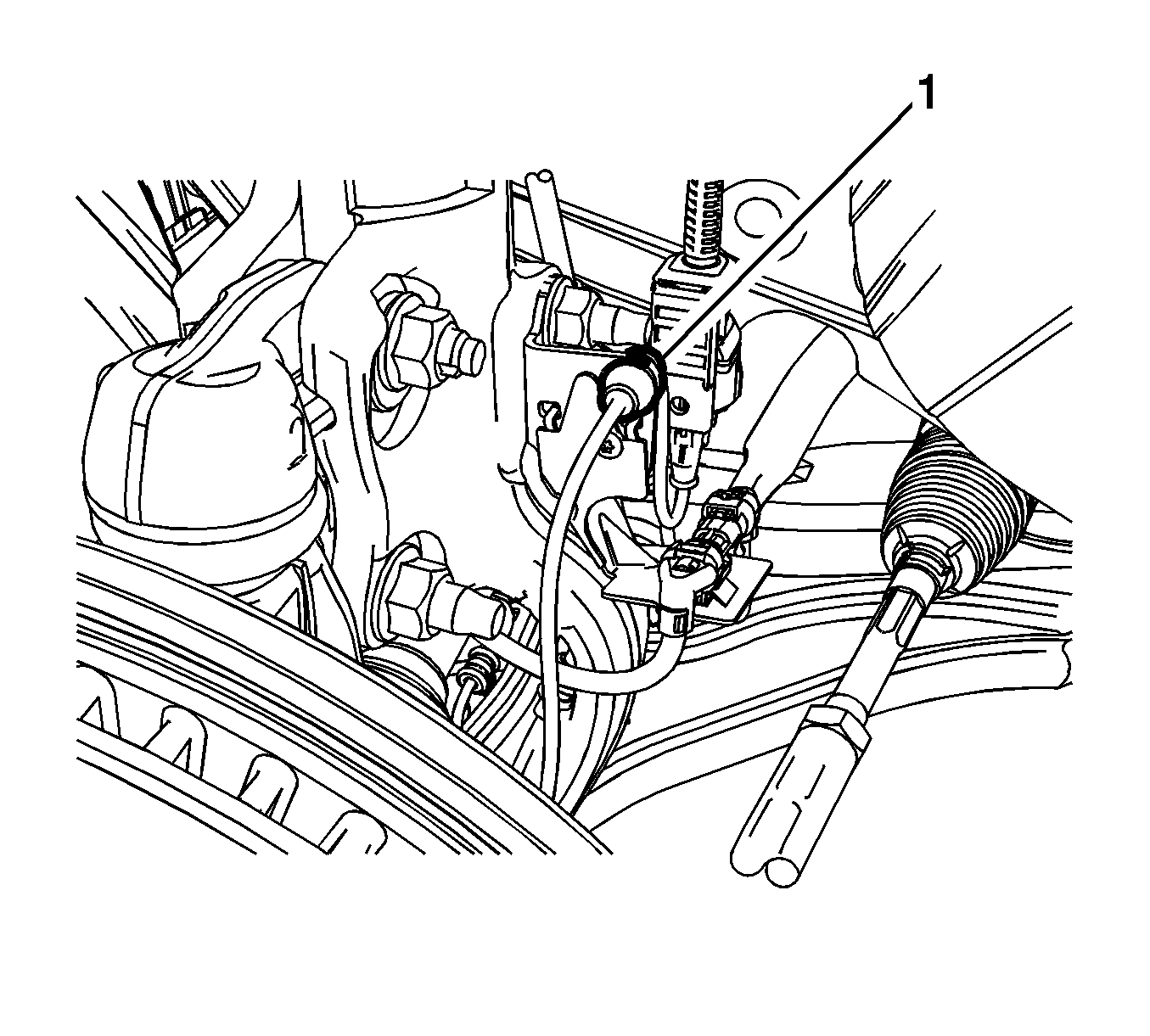

Install the wheel speed sensor harness grommet (1) to the strut bracket.
Courtesy of GENERAL MOTORS COMPANY

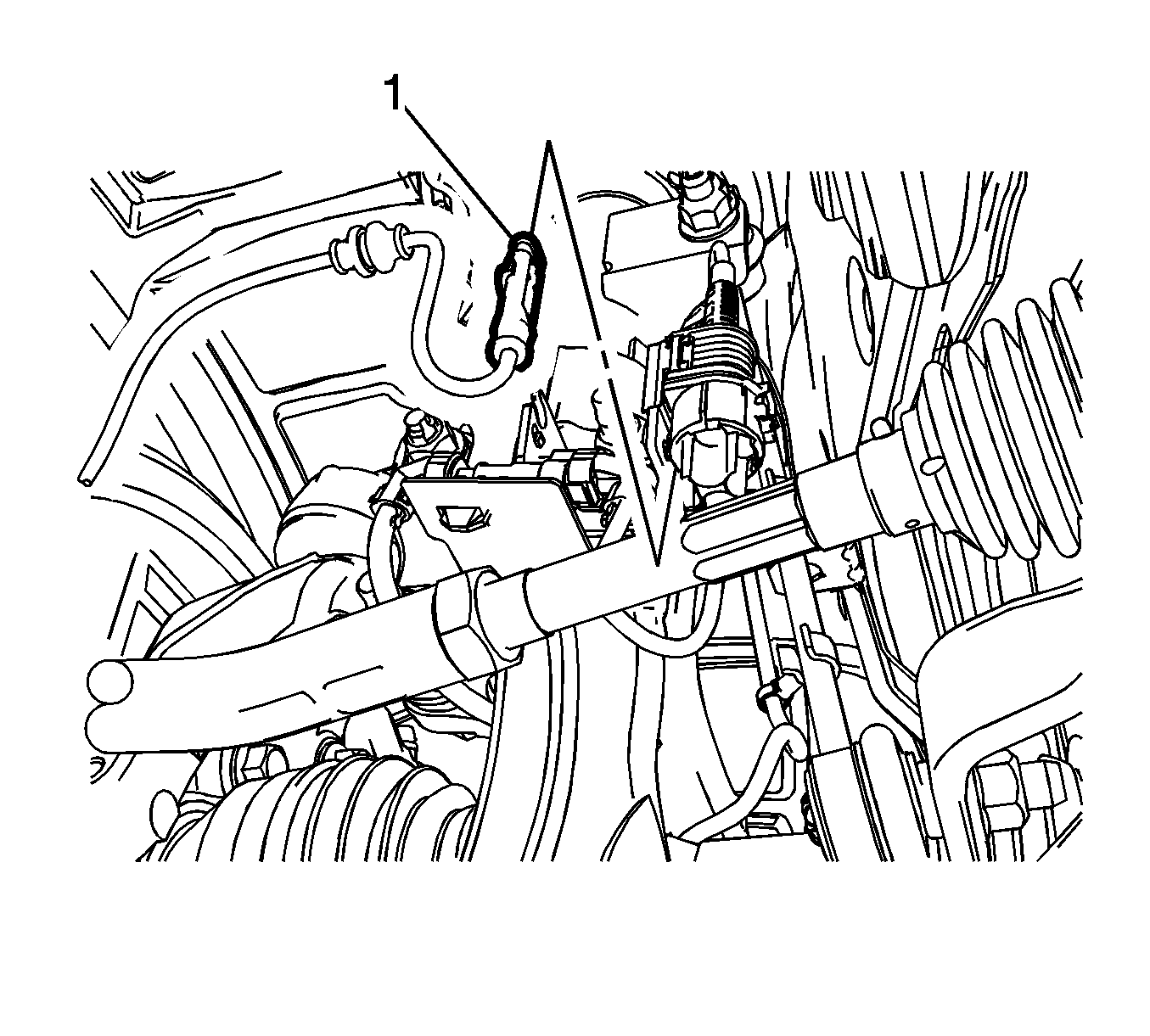

Lock and connect the wheel speed sensor electrical connector (1).
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (With J64) , or Tire and Wheel Removal and Installation (With J55) .
Perform the Diagnostic System Check - Vehicle .
