Installation Procedure

  1. Install the battery positive and negative cable into the vehicle and place into position.

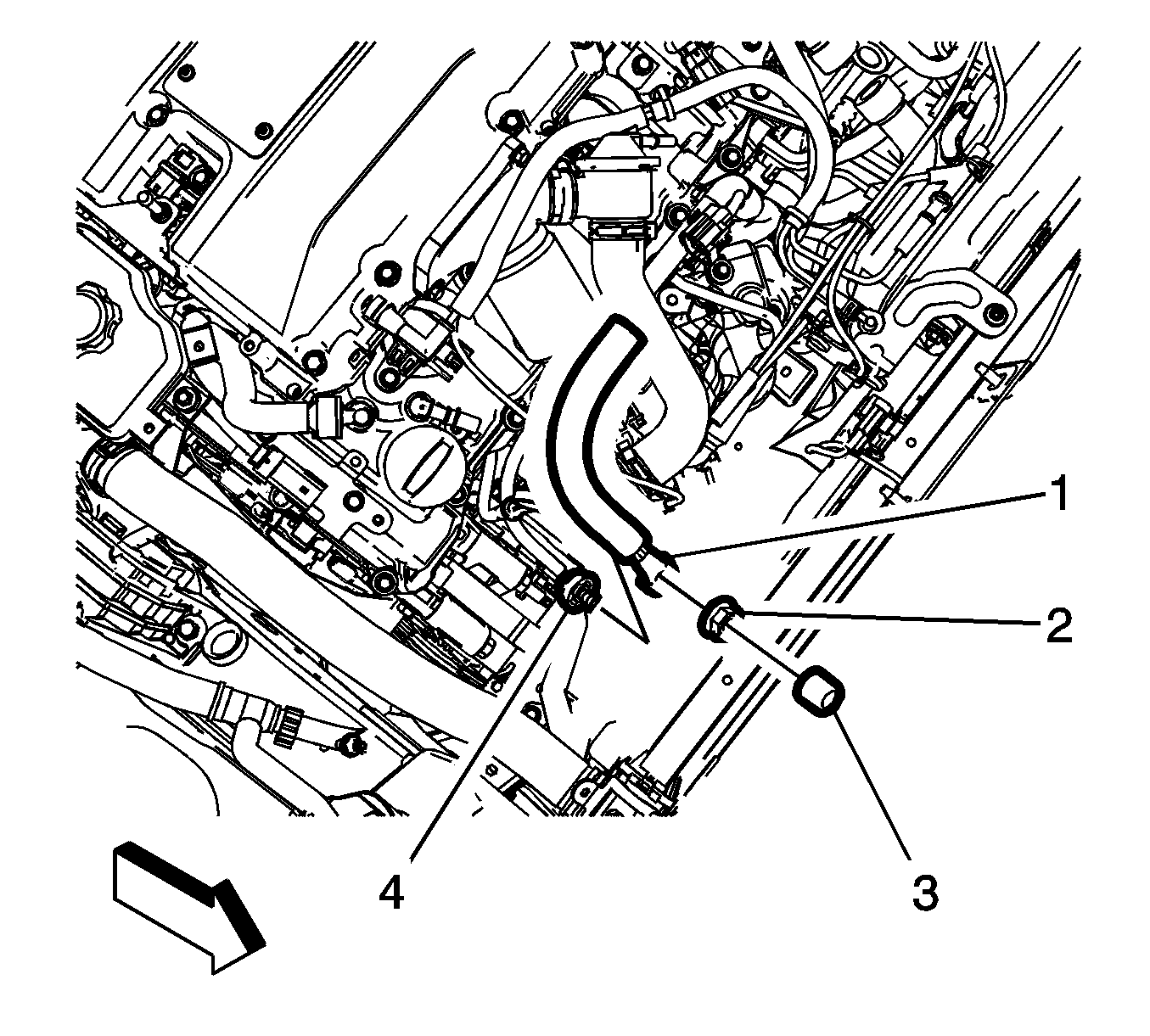

  2. GM3285617Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the battery positive cable terminal (1) to the B + generator stud (4) and tighten the fastener (2) to 15 N.m (11 lb ft)

  3. Install the protective cap (3).

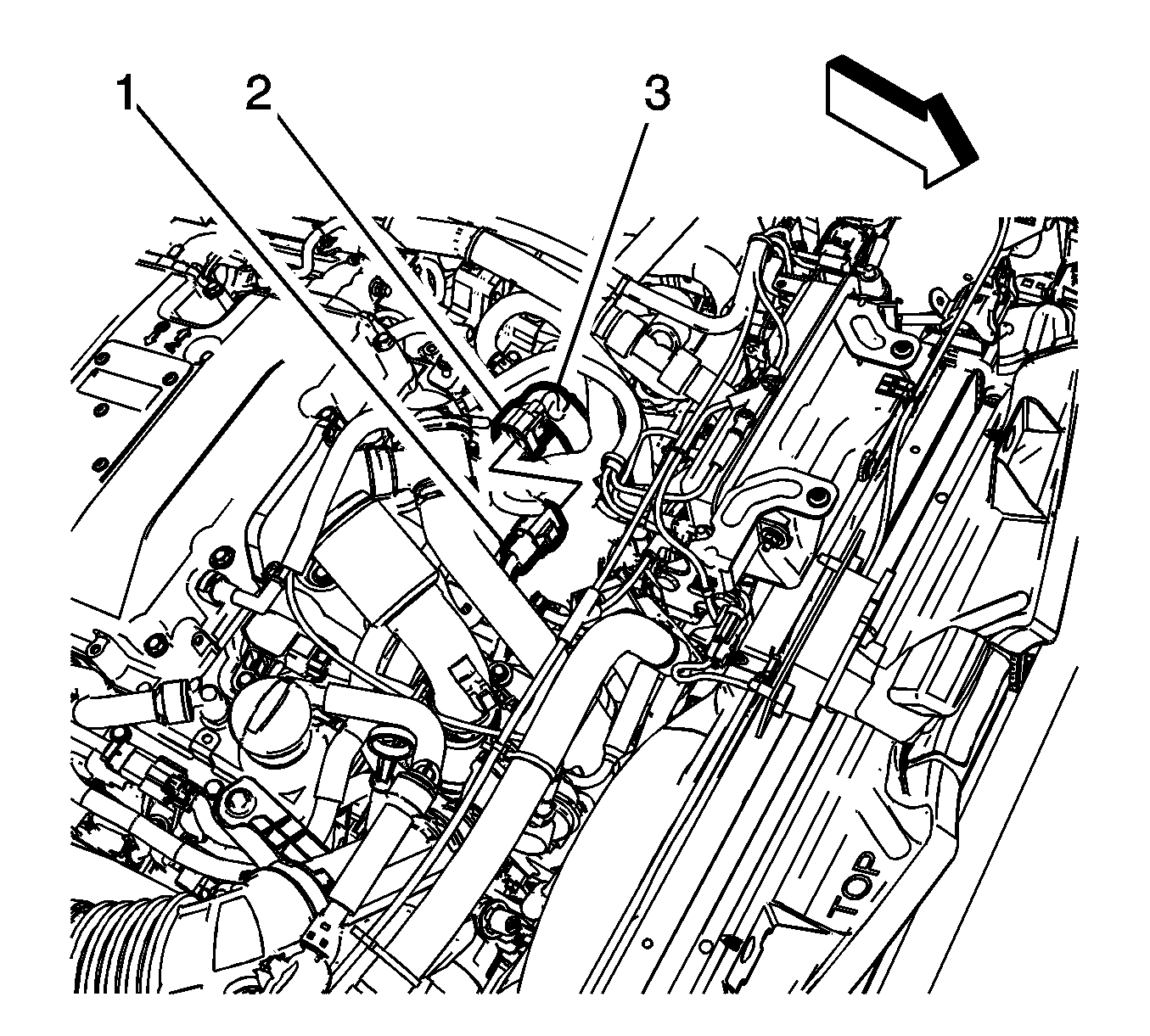

  4. GM3285618Courtesy of GENERAL MOTORS COMPANY

    Connect the engine wiring harness connector (1) to the battery positive and negative cable connector (2).

  5. GM3285607Courtesy of GENERAL MOTORS COMPANY

    Connect the battery positive cable terminal (1) to the starter solenoid stud and tighten the fastener (2) to 9 N.m (80 lb in)

  6. Connect the battery positive cable connector (3) to the starter solenoid.
  7. Position the starter (4) into position on the bell housing.
  8. GM3285609Courtesy of GENERAL MOTORS COMPANY

    Install the starter mounting fasteners (1) and tighten to 58 N.m (43 lb ft)

  9. GM3285610Courtesy of GENERAL MOTORS COMPANY

    Install the battery positive cable conduit bracket (3) to the starter solenoid (2) and tighten the fastener (1) to 9 N.m (80 lb in)

  10. GM3285611Courtesy of GENERAL MOTORS COMPANY

    Install the starter heat shield into position on the starter (2) with the retaining clip (1).

  11. GM3285612Courtesy of GENERAL MOTORS COMPANY

    Install the starter heat shield fastener (1) and tighten to 4.7 N.m (42 lb in)

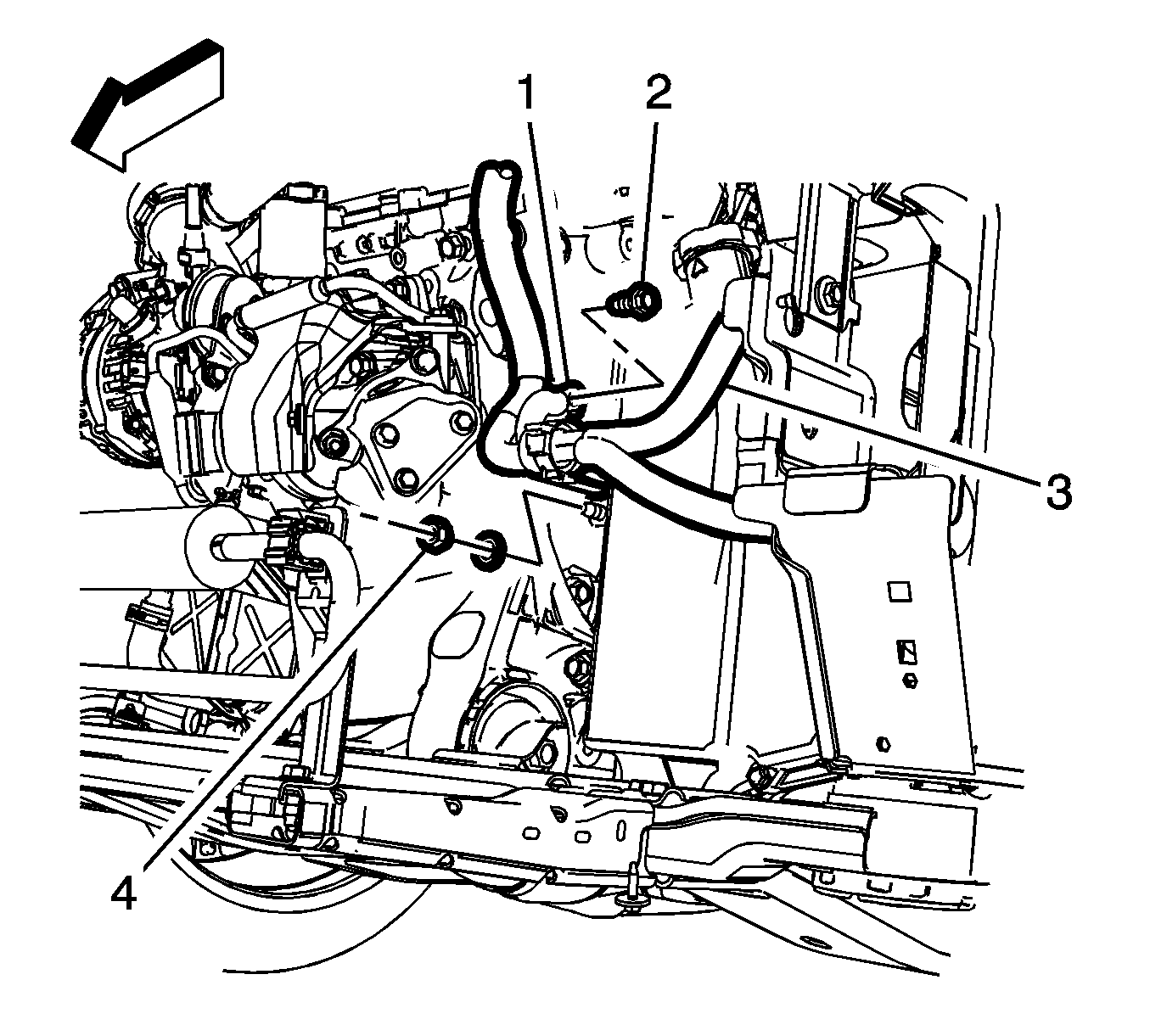

  12. GM3285620Courtesy of GENERAL MOTORS COMPANY

    Install the battery negative cable terminal (1) to the engine block and tighten the fastener (2) to 25 N.m (18 lb ft)

  13. Install the battery positive and negative cable bracket to the transmission stud and tighten the fastener (4) to 9 N.m (80 lb in)

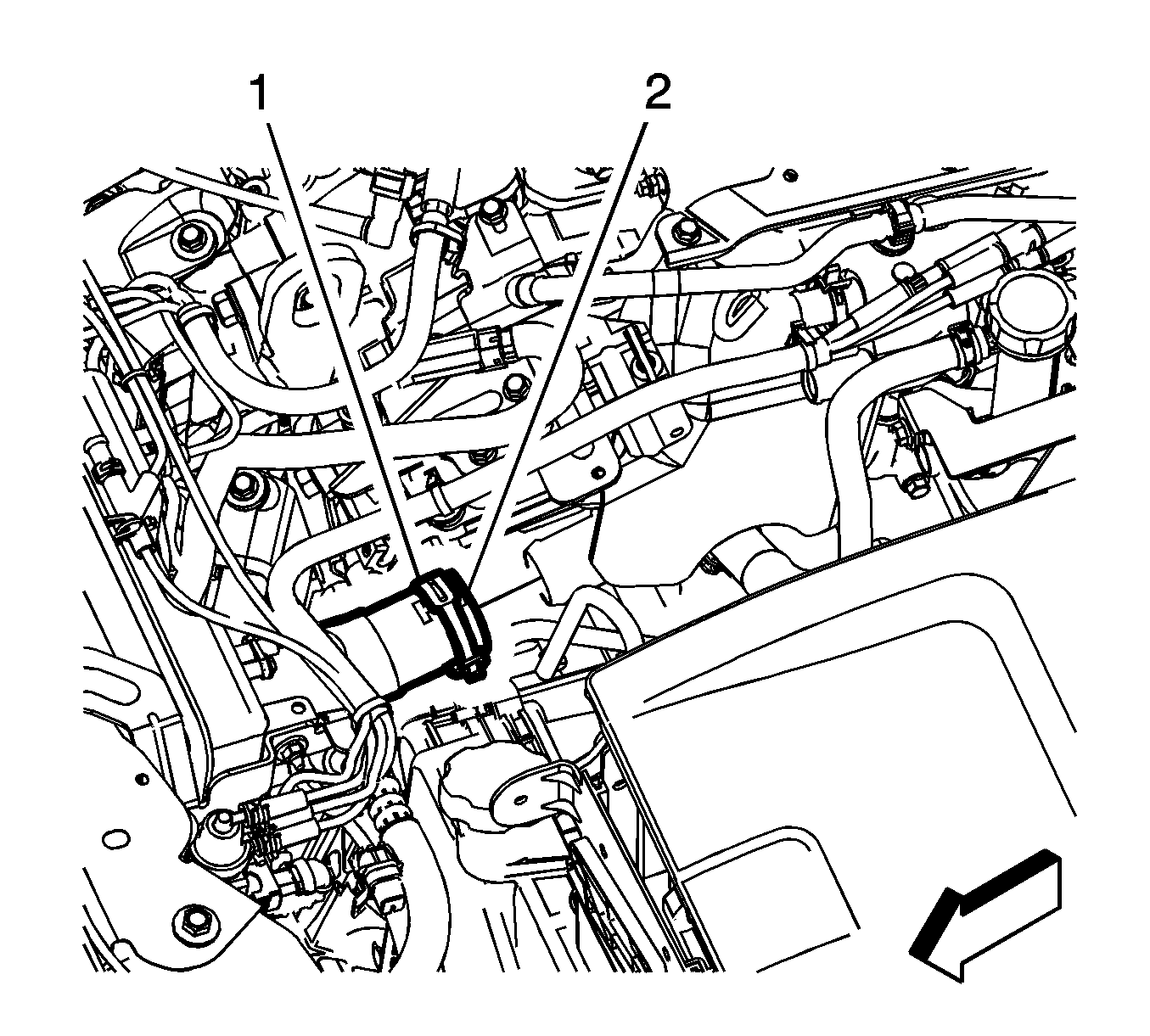

  14. GM3291656Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2) @ Engine Coolant Thermostat Housing Pipe - Install - Radiator Outlet Hose Replacement (LFX) , or Radiator Outlet Hose Replacement (LF3)

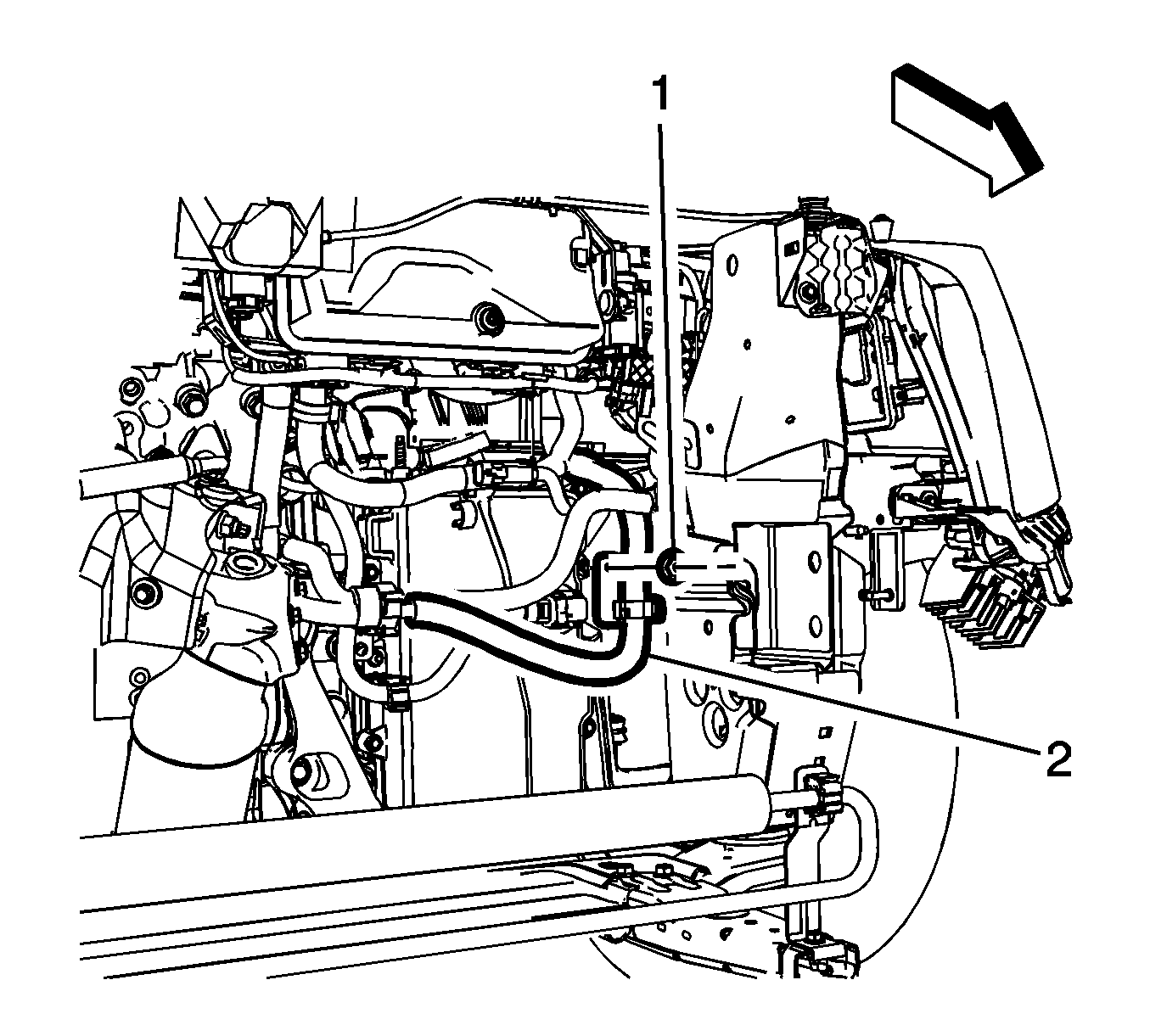

  15. GM3285623Courtesy of GENERAL MOTORS COMPANY

    Install the battery positive and negative cable bracket (2) to the transmission stud and tighten the fastener (1) to 9 N.m (80 lb in)

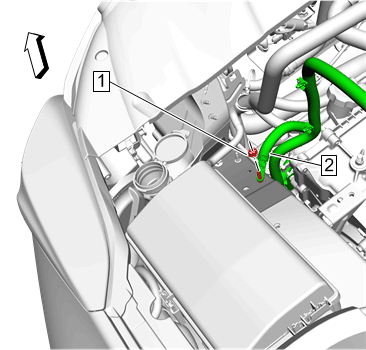

  16. GM4817536Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (2) - Install

  17. Battery Negative Cable Fastener (1) - Install and tighten9 N.m (80 lb in)
  18. GM4707764Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (3) - Install - Battery Tray Replacement

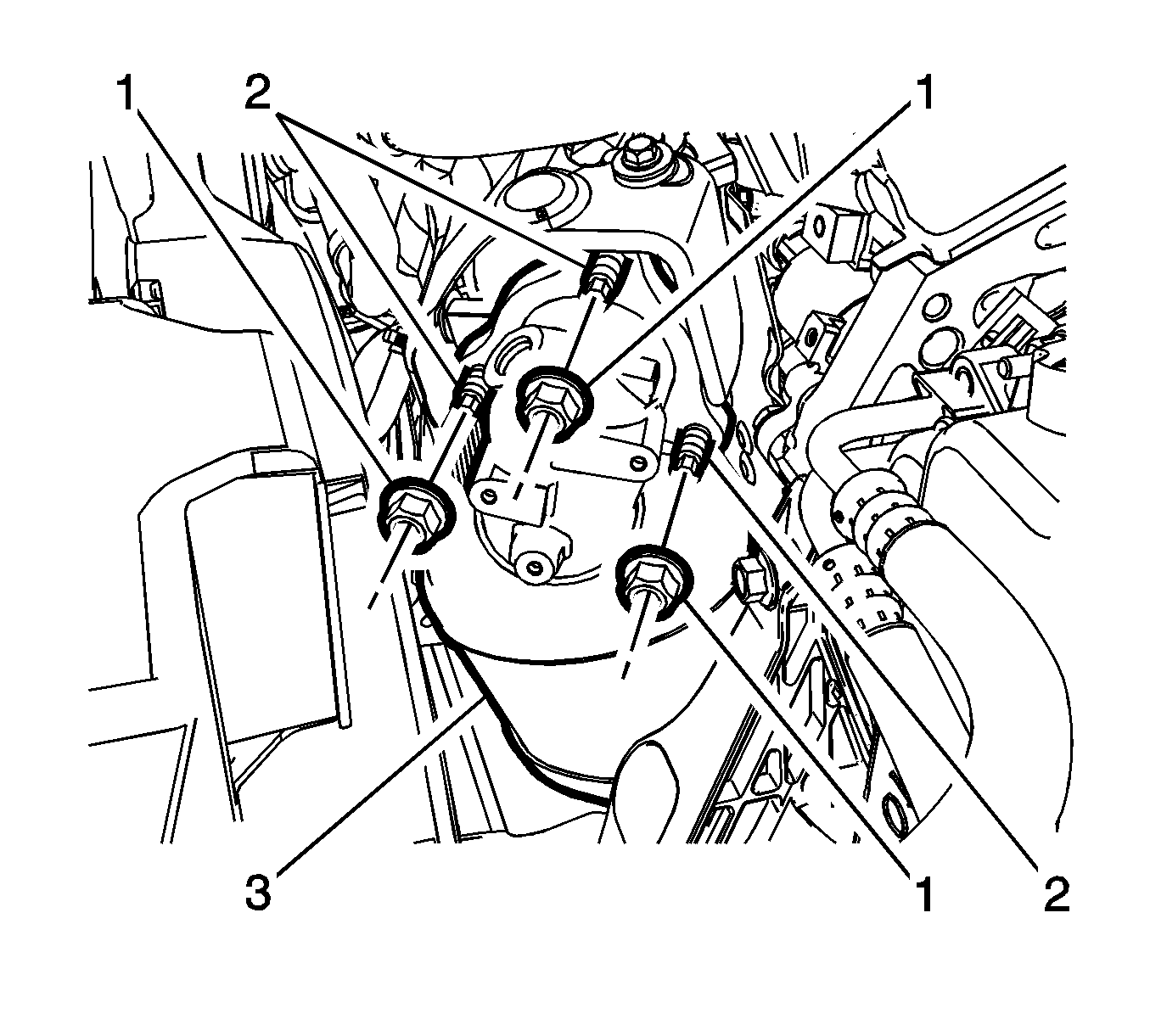

  19. GM3284064Courtesy of GENERAL MOTORS COMPANY

    Three-Way Catalytic Converter (3) - Install - Three-Way Catalytic Converter Replacement (Front-LFX) , or Three-Way Catalytic Converter Replacement (Rear-LFX) , or Three-Way Catalytic Converter Replacement (Front LF3) , or Three-Way Catalytic Converter Replacement (Rear LF3)

  20. GM3286970Courtesy of GENERAL MOTORS COMPANY

    Install the front turbocharger heat shield (3). Turbocharger Heat Shield Replacement (Front) , or Turbocharger Heat Shield Replacement (Rear)

  21. GM3291031Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank (3) - Install - Turbocharger Wastegate Actuator Vacuum Tank Replacement (LF3)

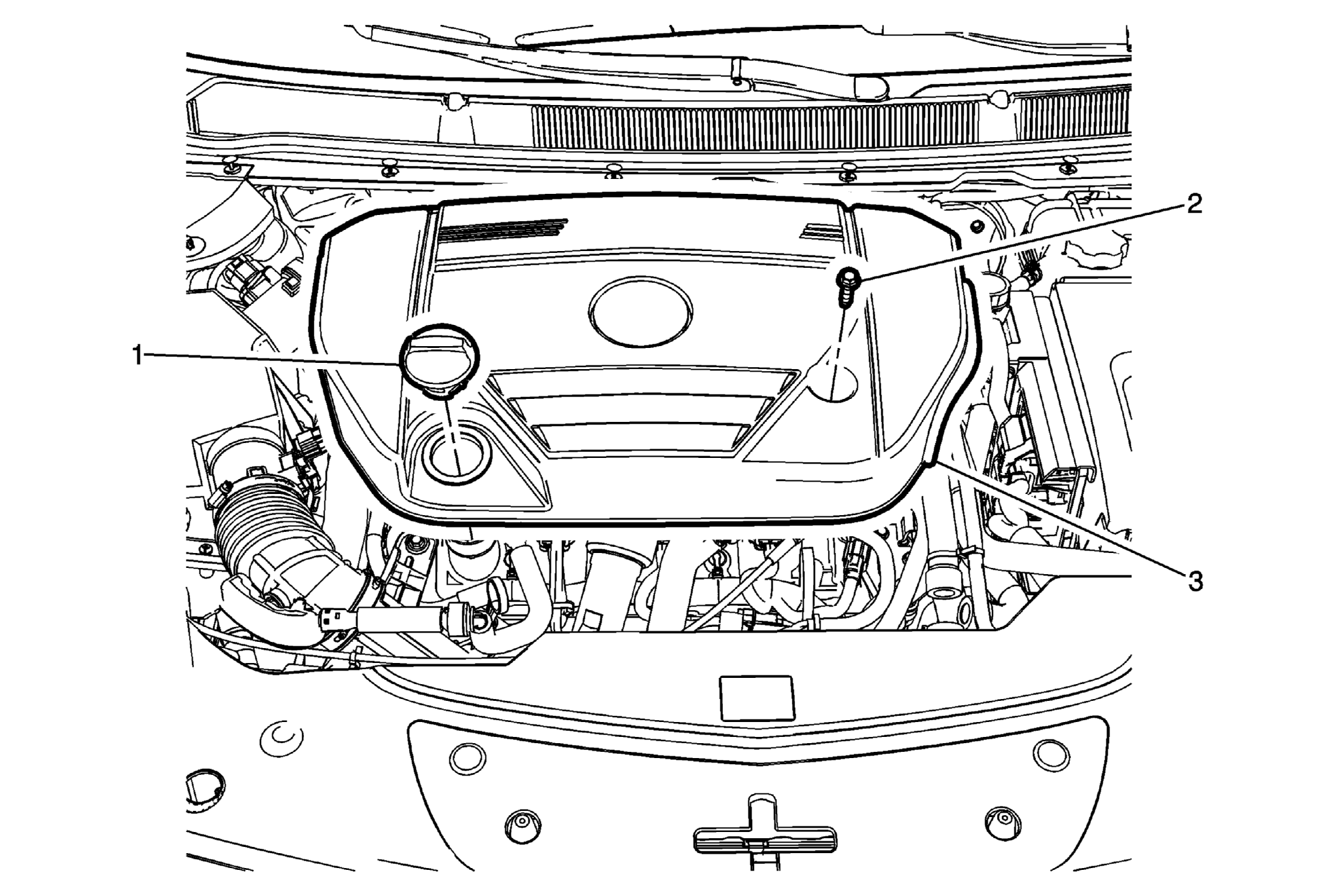

  22. GM3330809Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (3) - Install - Intake Manifold Cover Replacement (LFX) , or Intake Manifold Cover Replacement (LF3)

  23. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
