Parking Assist Control Module Replacement
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

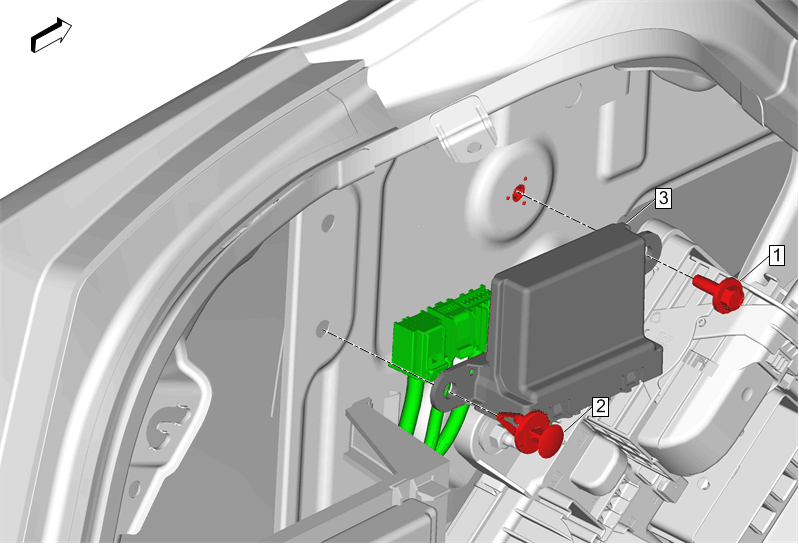

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Compartment Side Trim Replacement - Left Side |
|
| 1 | Parking Assist Alarm Control Module Bolt
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Parking Assist Control Module Retainer |
| 3 | Parking Assist Control Module Procedure
|
