Outside Rearview Mirror Remote Control Switch Replacement

WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Remove the front side door accessory switch mount plate - drivers side door. Refer to Front Side Door Accessory Switch Mount Plate Replacement .

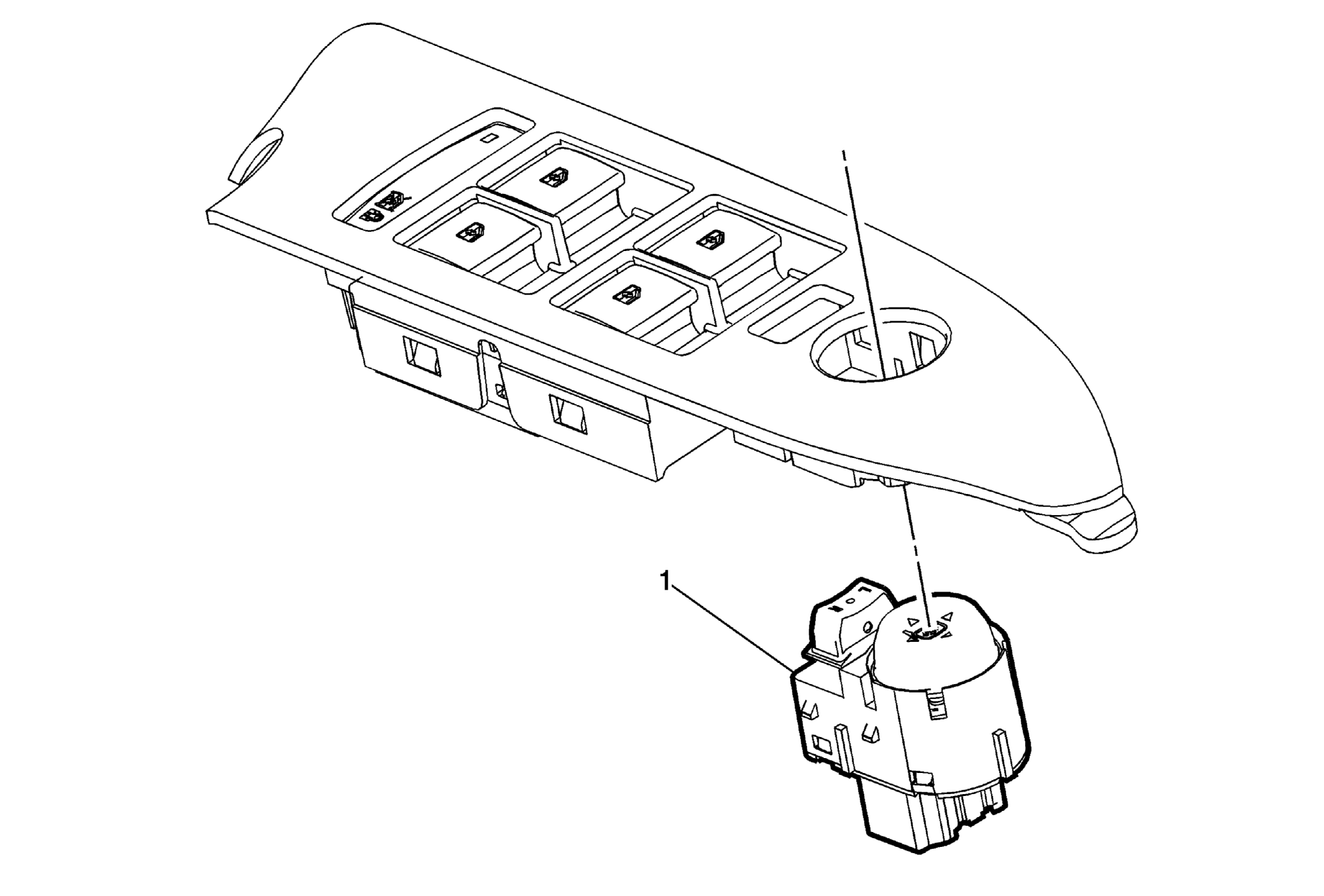

1	Outside Remote Control Rearview Mirror Switch Assembly Procedure Release tabs on switch to remove from the front side door accessory switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate - drivers side door. Refer to Front Side Door Accessory Switch Mount Plate Replacement .

Outside Remote Control Rearview Mirror Switch Assembly

Procedure

Release tabs on switch to remove from the front side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
