Front View Driver Information Camera Replacement
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

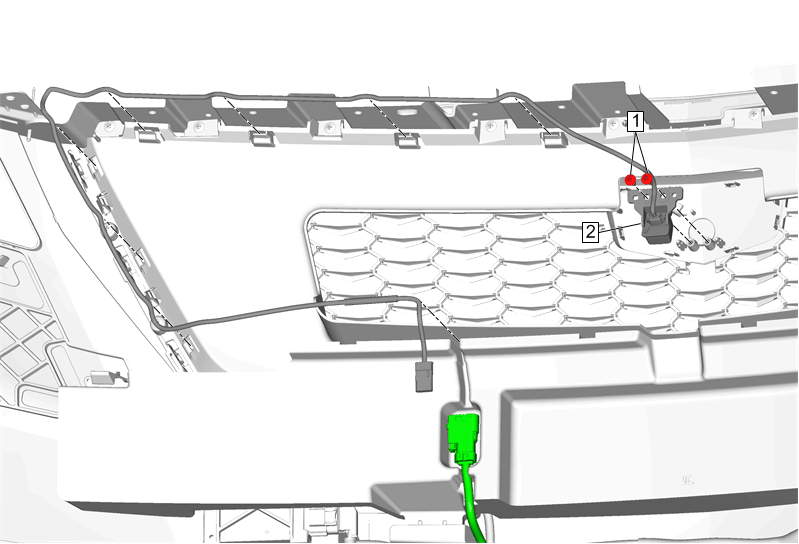

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Replacement |
|
| 1 | Front Grille Bolt [2x]
CAUTION:
Tighten 1.4 N.m (12 lb in) |
| 2 | Front View Driver Information Camera Procedure Disconnect the electrical connector. |
