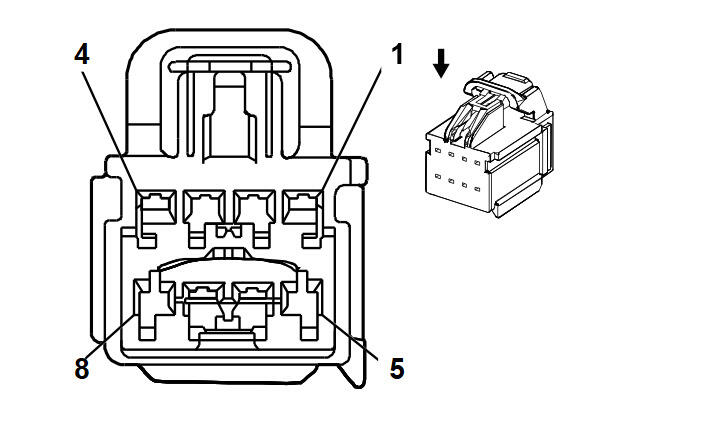

K29F Seat Heating Control Module - Front X2 (CZ2)
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Passenger Seat Cushion
- OEM Connector: 7283-3441-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 1.5 YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.75 |
RD/YE |
1442 |
Battery Positive Voltage |
I |
- |
| 3 |
0.75 |
RD/GY |
1342 |
Battery Positive Voltage |
I |
- |
| 4 |
1 |
BN/VT |
2077 |
Driver Heated Seat Element Control |
I |
- |
| 5 |
0.5 |
BN/BU |
2479 |
Passenger Heated Seat Element Control |
I |
- |
| 6 |
0.5 |
GY |
2045 |
Video Synchronization Signal 1 |
I |
- |
| 7 |
0.75 |
BK |
2050 |
Ground |
I |
- |
| 8 |
1 |
BN |
2432 |
Driver Heated Back Element Control |
I |
- |
