K50 Rear Window Sunshade Module X2 (DB3)
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

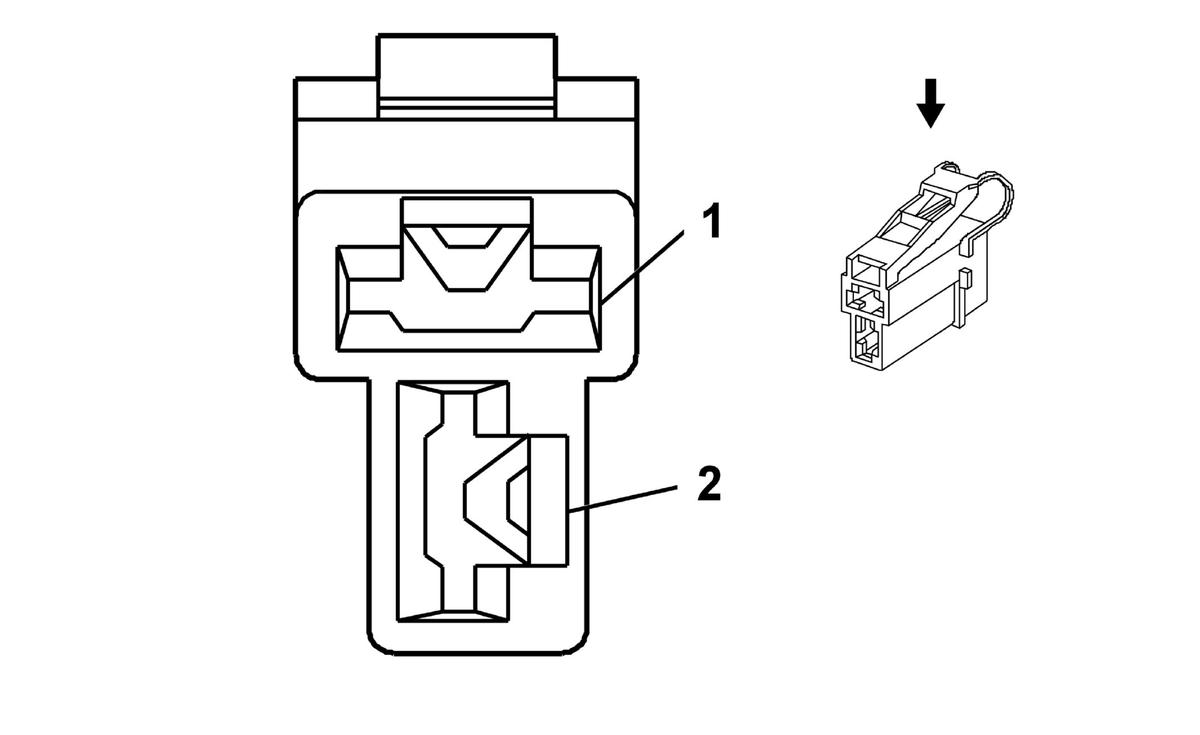

Connector Part Information
- Harness Type: Sunshade
- OEM Connector: CN-2ASP
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
RD |
5938 |
Sunshade Motor Up Control |
I |
- |
| 2 |
1 |
BK |
5939 |
Sunshade Motor Down Control |
I |
- |
