S70L Steering Wheel Controls Switch - Left
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

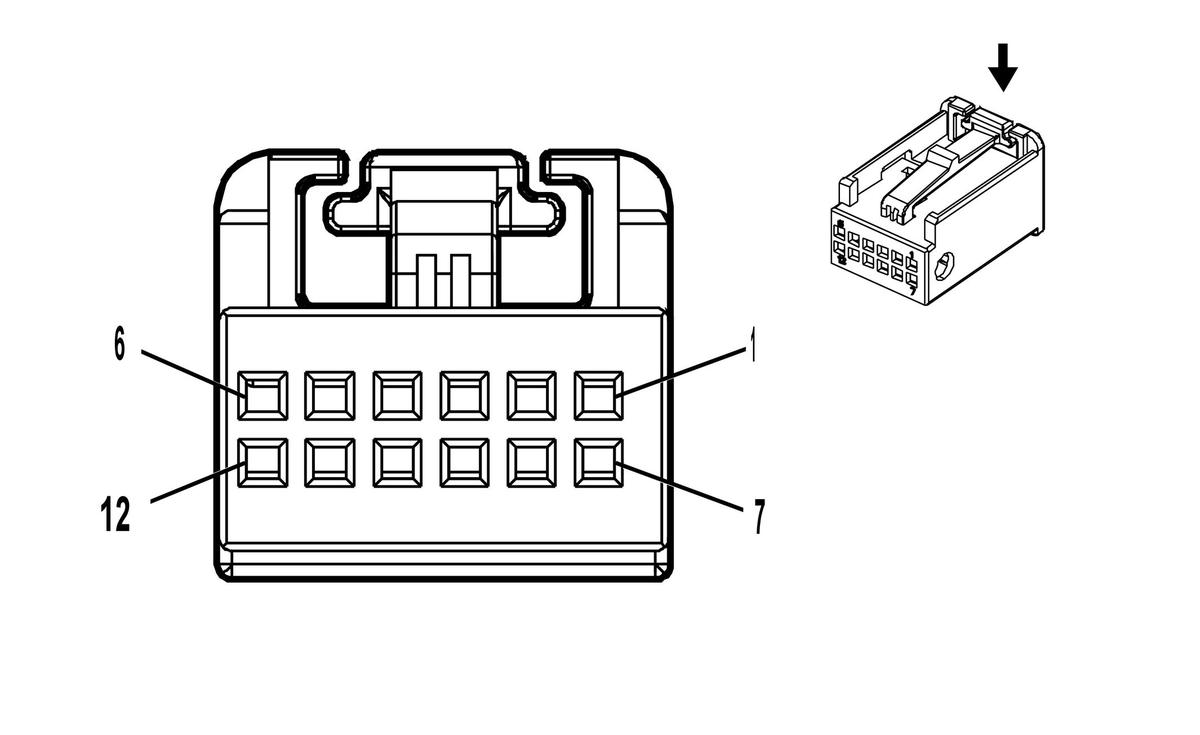

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 13578796
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way F 0.64 GET Series (BK with BK Case)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
9500 |
Voice Recognition Signal |
I |
- |
| 2 |
0.35 |
OG/BK |
6817 |
LED Backlight Dimming Control |
I |
- |
| 3 |
0.35 |
BK/YE |
9501 |
Hang-up Signal |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
PK |
6816 |
Indicator Dimming Control |
I |
- |
| 6 |
0.35 |
BK |
1550 |
Ground |
I |
- |
| 7 |
0.35 |
RD/WH |
5440 |
Battery Positive Voltage |
I |
- |
| 8 |
0.35 |
WH |
1444 |
12V Reference |
I |
- |
| 9 |
0.35 |
GY/GN |
5737 |
Adaptive Cruise Control Gap Up/Down Switch Signal |
I |
- |
| 10 |
0.35 |
BN/GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 11 |
0.35 |
OG |
5883 |
Heated Steering Wheel Switch Signal |
I |
- |
| 12 |
0.35 |
PK |
5884 |
Heated Steering Wheel Switch LED Control |
I |
- |
