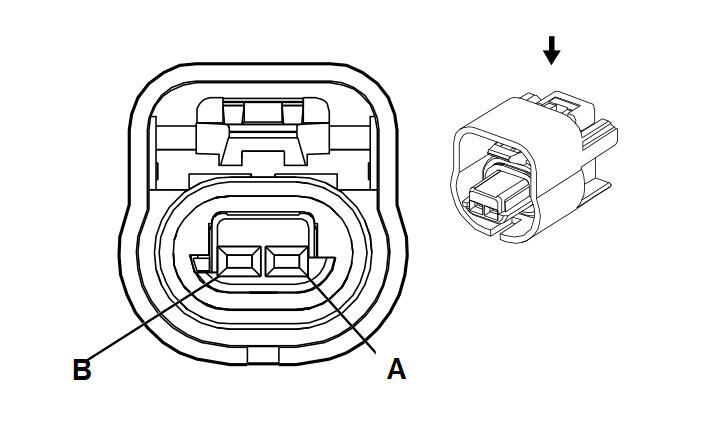

B109 Transfer Case Fluid Temperature Sensor
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 15355317
- Service Connector: 19178093
- Description: 2-Way F 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
VT/RD |
7484 |
Oil Temperature Sensor 5V Reference |
I |
F46 |
| B |
0.5 |
VT |
7485 |
Oil Temperature Sensor Signal |
I |
F46 |
