Radio Replacement

WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Before removing the radio, perform the radio reset. Radio Reset Instrument Panel Insulator Panel Replacement - Right Side
1	Radio Procedure Disconnect the electrical connectors. Release the retaining tabs. After installing the radio, perform the radio reset. Radio Reset

Callout

Component Name

Preliminary Procedures

Before removing the radio, perform the radio reset. Radio Reset
Instrument Panel Insulator Panel Replacement - Right Side

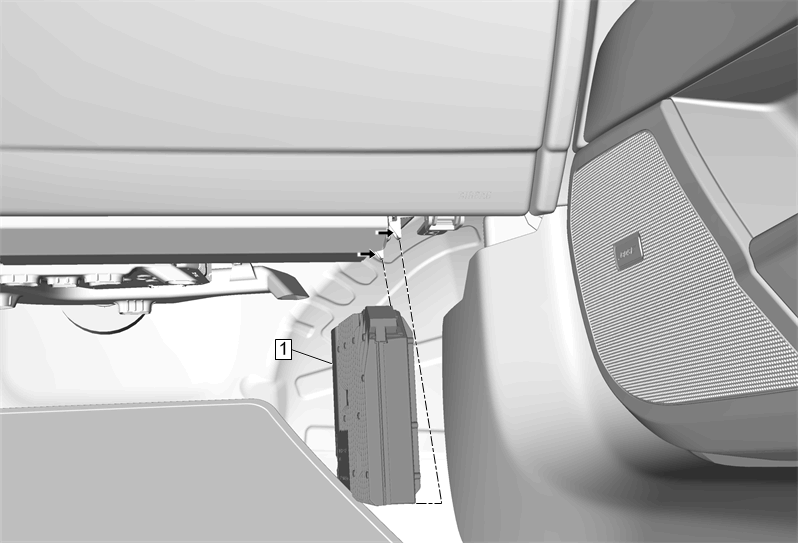

Radio

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
After installing the radio, perform the radio reset. Radio Reset
