Radio Speaker Replacement
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

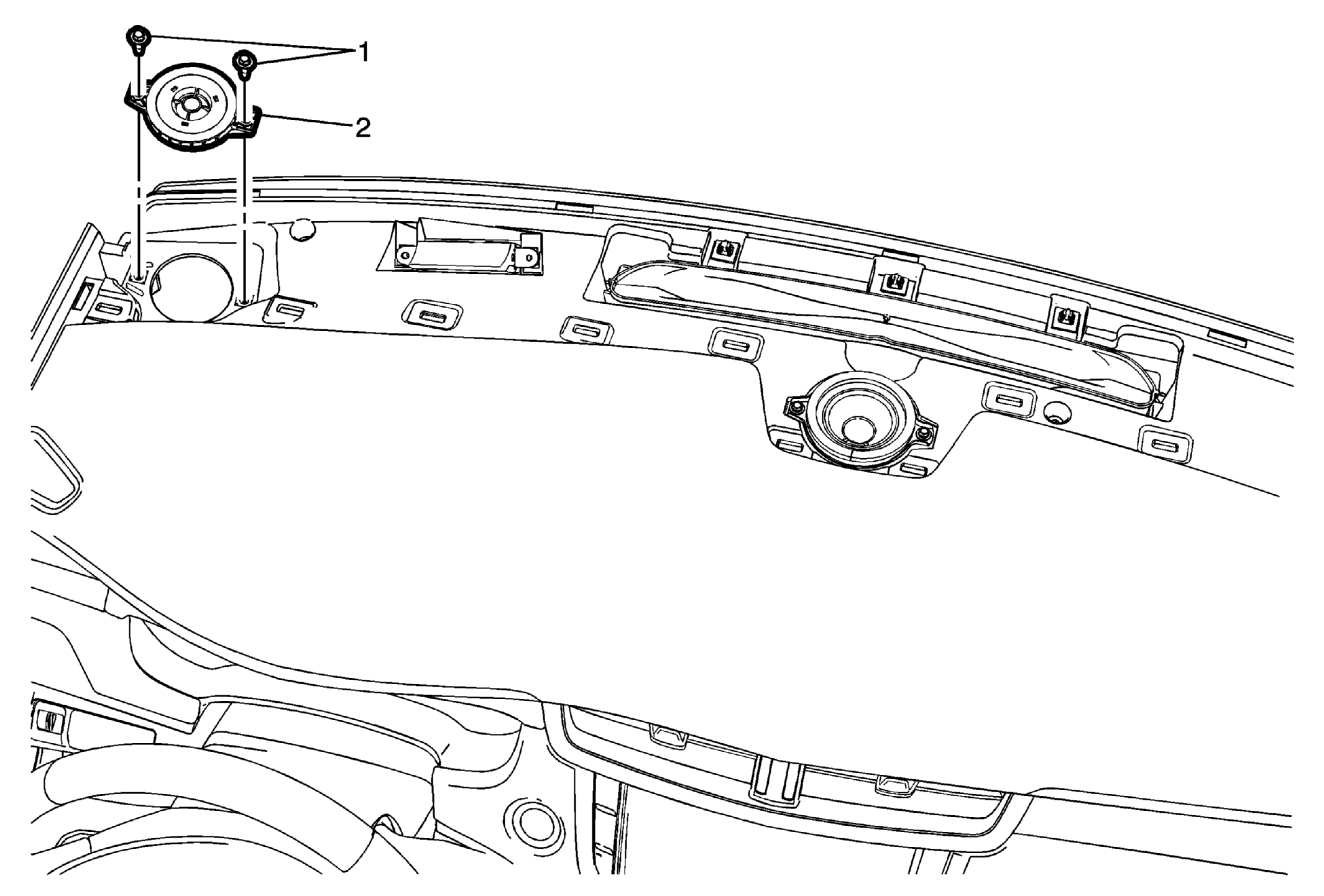

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the windshield defroster nozzle grille. Refer to Windshield Defroster Nozzle Grille Replacement . |
|
| 1 | Radio Speaker Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Radio Speaker Procedure Disconnect the electrical connector. |
