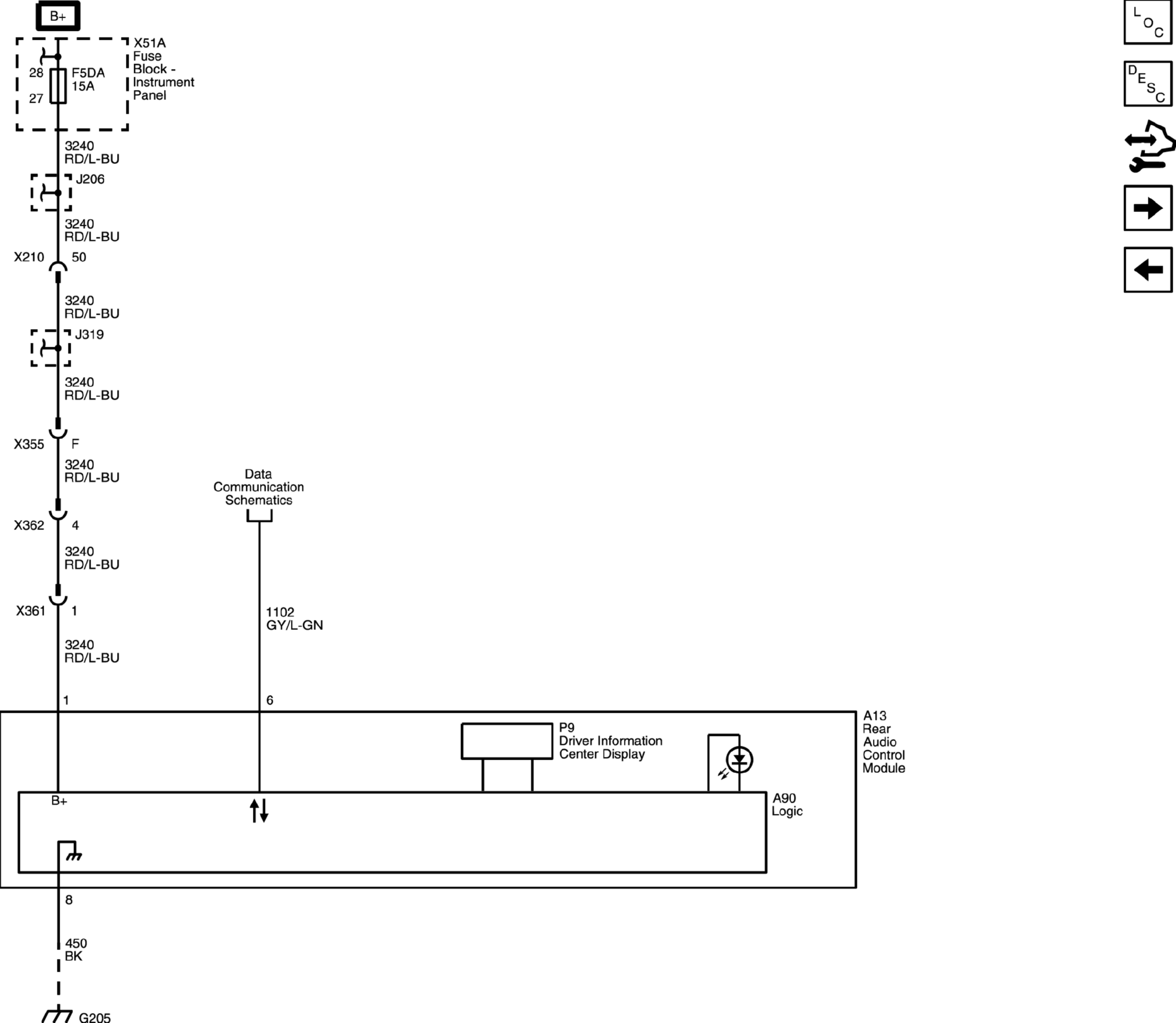

Rear Seat Audio Control (W68)

WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
GM4732388Courtesy of GENERAL MOTORS COMPANY
