K83 Park Brake Control Module
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

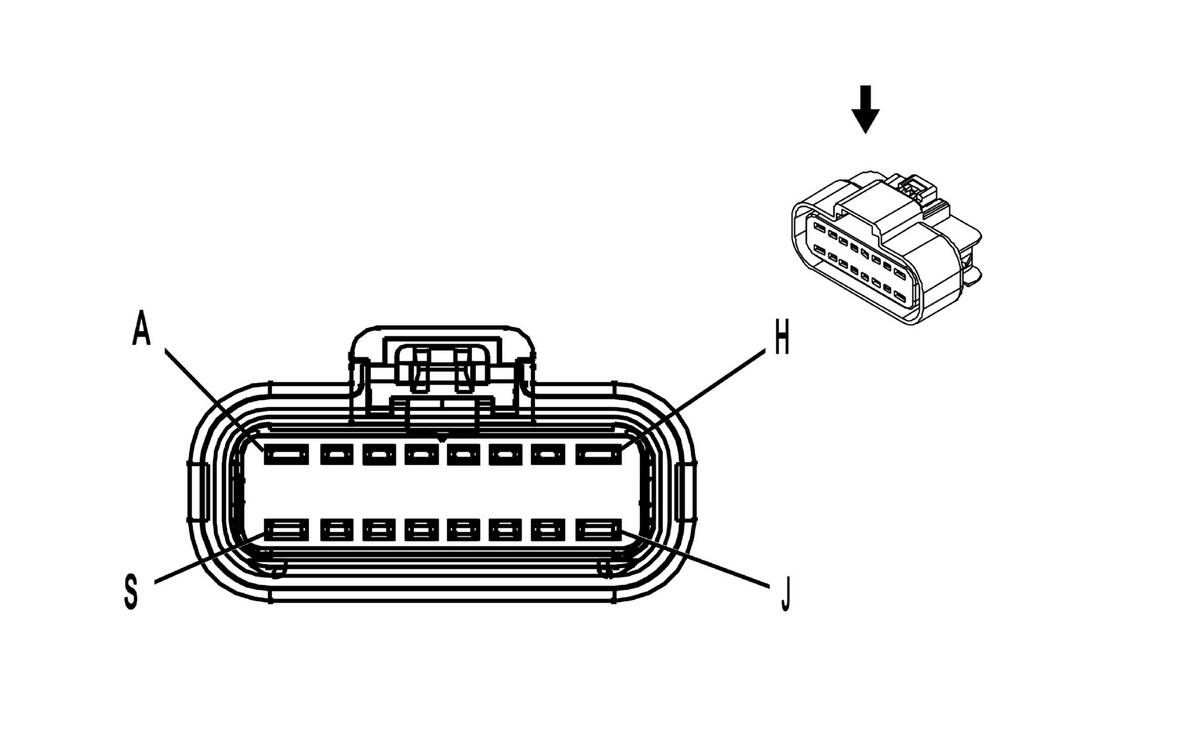

Connector Part Information
- Harness Type: Rear Chassis
- OEM Connector: 88988439
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 150, 280 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
2.5 |
RD/VT |
1640 |
Battery Positive Voltage |
II |
- |
| B |
0.75 |
YE/RD |
7683 |
Park Brake Release Switch Voltage Reference |
I |
- |
| C |
0.75 |
BU/VT |
1134 |
Park Brake Switch Signal |
I |
- |
| D |
0.75 |
GY/RD |
7684 |
Park Brake Apply Switch Voltage Reference |
I |
- |
| E |
0.5 |
BK/GN |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| F |
0.75 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| G |
0.5 |
GN/WH |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| H |
2.5 |
BK |
2550 |
Ground |
II |
- |
| J |
- |
- |
- |
Not Occupied |
- |
- |
| K |
0.5 |
BK/GN |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| L |
0.75 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
I |
- |
| M |
0.5 |
GN/WH |
2500 |
High Speed GMLAN Serial Data (+) 1 |
I |
- |
| N |
0.75 |
YE |
1492 |
Park Brake Switch Supply Voltage |
I |
- |
| P |
0.75 |
WH/BU |
5986 |
Serial Data Communication Enable |
I |
- |
| R |
0.75 |
BN |
6107 |
Park Brake Apply Switch Signal |
I |
- |
| S |
0.75 |
BU/BK |
6108 |
Park Brake Release Switch Signal |
II |
- |
