K182 Parking Assist Control Module X3
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

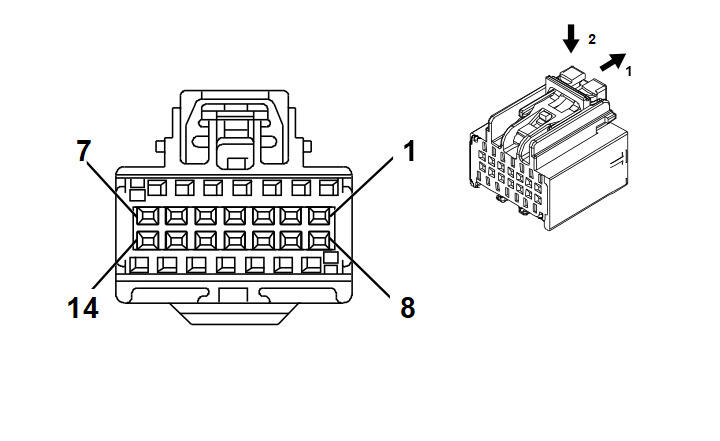

Connector Part Information
- Harness Type: Body
- OEM Connector: 13593897
- Service Connector: 19354933
- Description: 14-Way F 0.64 Kaizen Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575742 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN |
6581 |
Front Parking Aid Display Control |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
GY |
3154 |
Left Front Supplemental Object Sensor Signal |
I |
- |
| 4 |
0.5 |
VT/WH |
5215 |
Front Parking Left Corner Sensor |
I |
- |
| 5 |
0.5 |
YE/GY |
5216 |
Front Parking Left Mid Sensor |
I |
- |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
BK/BU |
5214 |
Front Parking Sensor Low Reference |
I |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.5 |
GN |
3155 |
Right Front Supplemental Object Sensor Signal |
I |
- |
| 11 |
0.5 |
WH/GY |
5217 |
Front Parking Right Corner Sensor |
I |
- |
| 12 |
0.5 |
VT/GY |
5218 |
Front Parking Right Mid Sensor |
I |
- |
| 13 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
