Forward Range Radar Sensor Replacement

WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

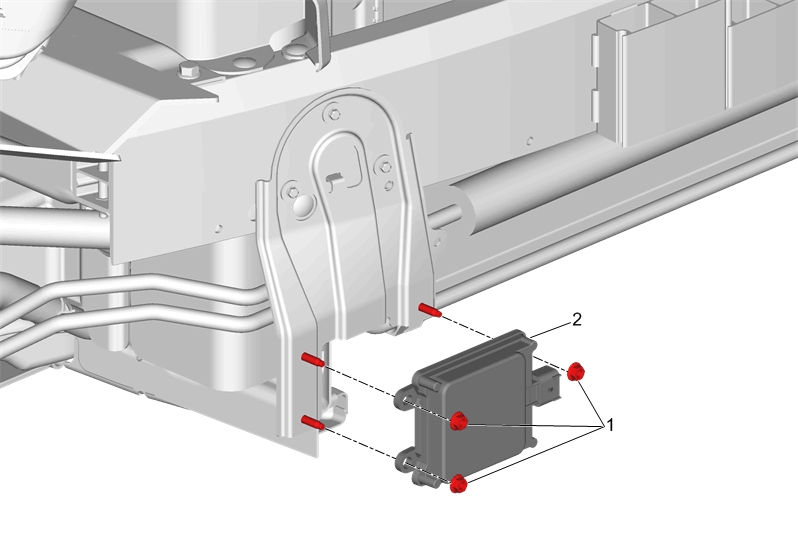

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Forward Range Radar Sensor Nut [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Forward Range Radar Sensor Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement

Forward Range Radar Sensor Nut [3x]

CAUTION:

Fastener Caution

Tighten
9 N.m (80 lb in)

Forward Range Radar Sensor

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
