Plenum Water Deflector Support Replacement
WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

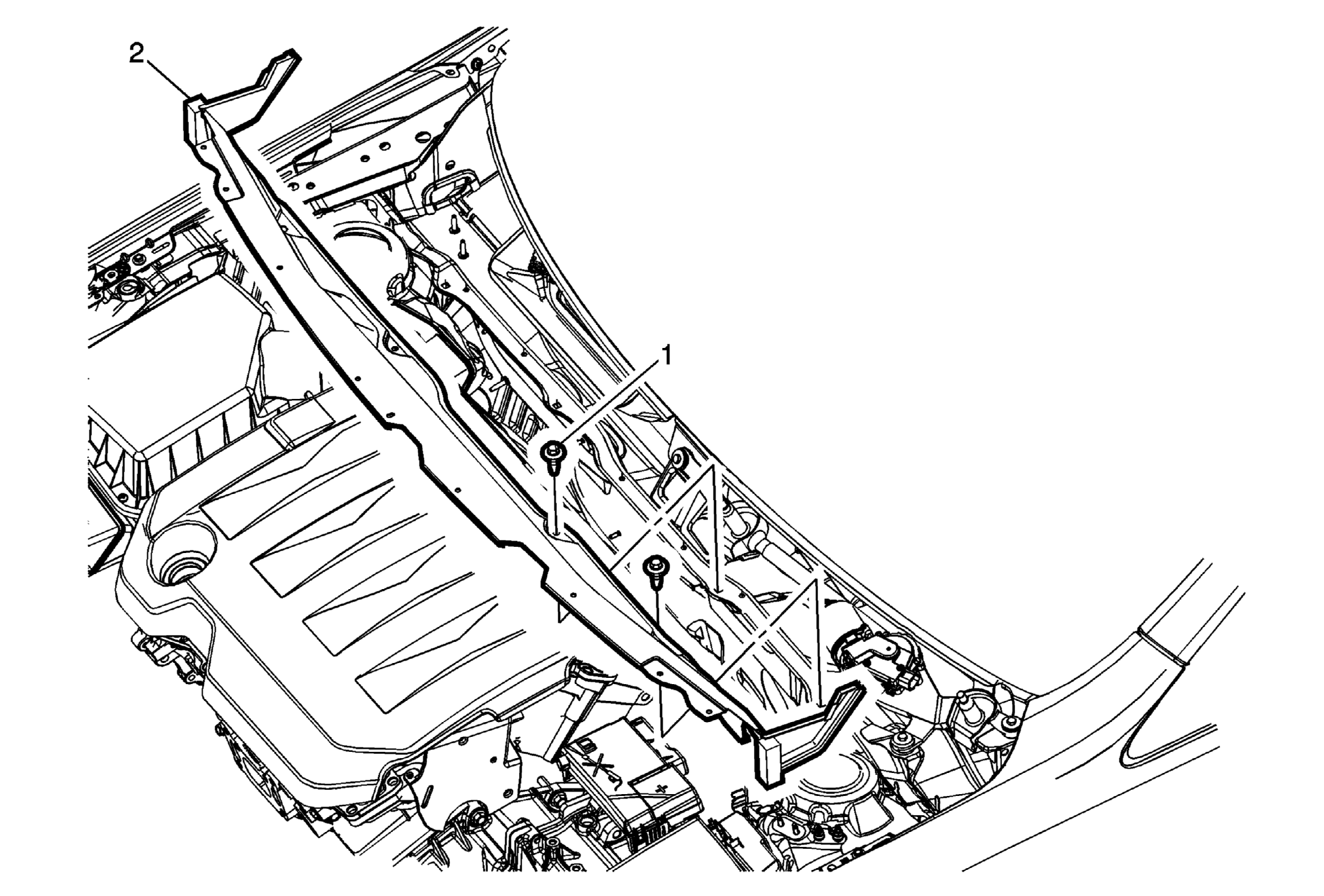

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air inlet grille panel air deflector. Refer to Air Inlet Grille Panel Air Deflector Replacement . |
|
| 1 | Plenum Water Deflector Support Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Plenum Water Deflector Support Procedure
|
