Power Steering Fluid Cooler Replacement

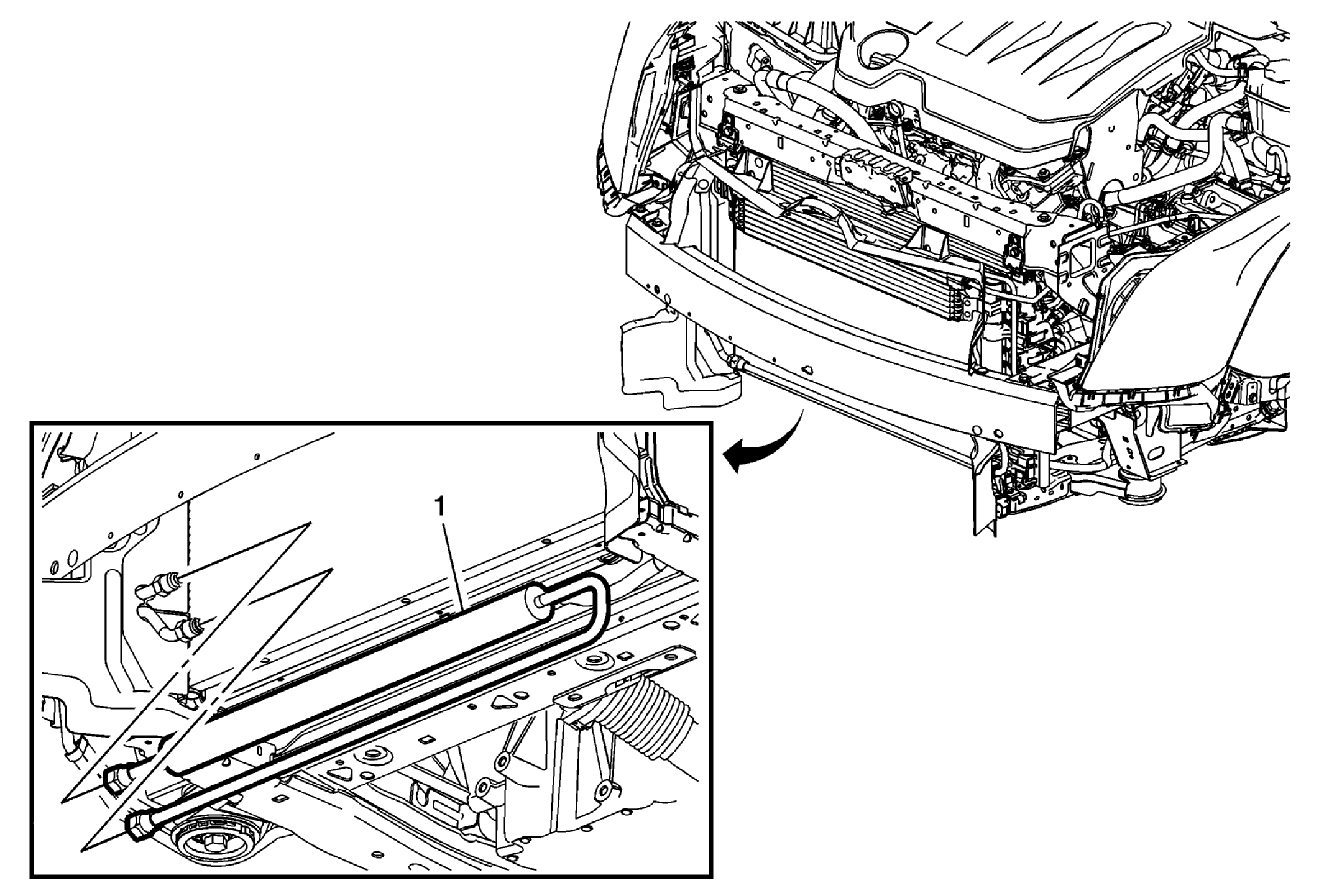

GM2777891Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove as much power steering fluid from the power steering fluid reservoir as possible.
  2. Front Bumper Fascia Replacement
1 Power Steering Fluid Cooler
CAUTION:

Refer to Component Fastener Tightening Caution .

Procedure

  1. Release the power steering fluid cooler from the plastic clip and disconnect the power steering hoses from the cooler.
  2. Connect the power steering hoses to the power steering fluid cooler and secure the cooler in the plastic clip.
  3. Fill and bleed the power steering system. Power Steering System Bleeding

Tighten
34 N.m (25 lb ft)
