Steering Column Lower Trim Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .

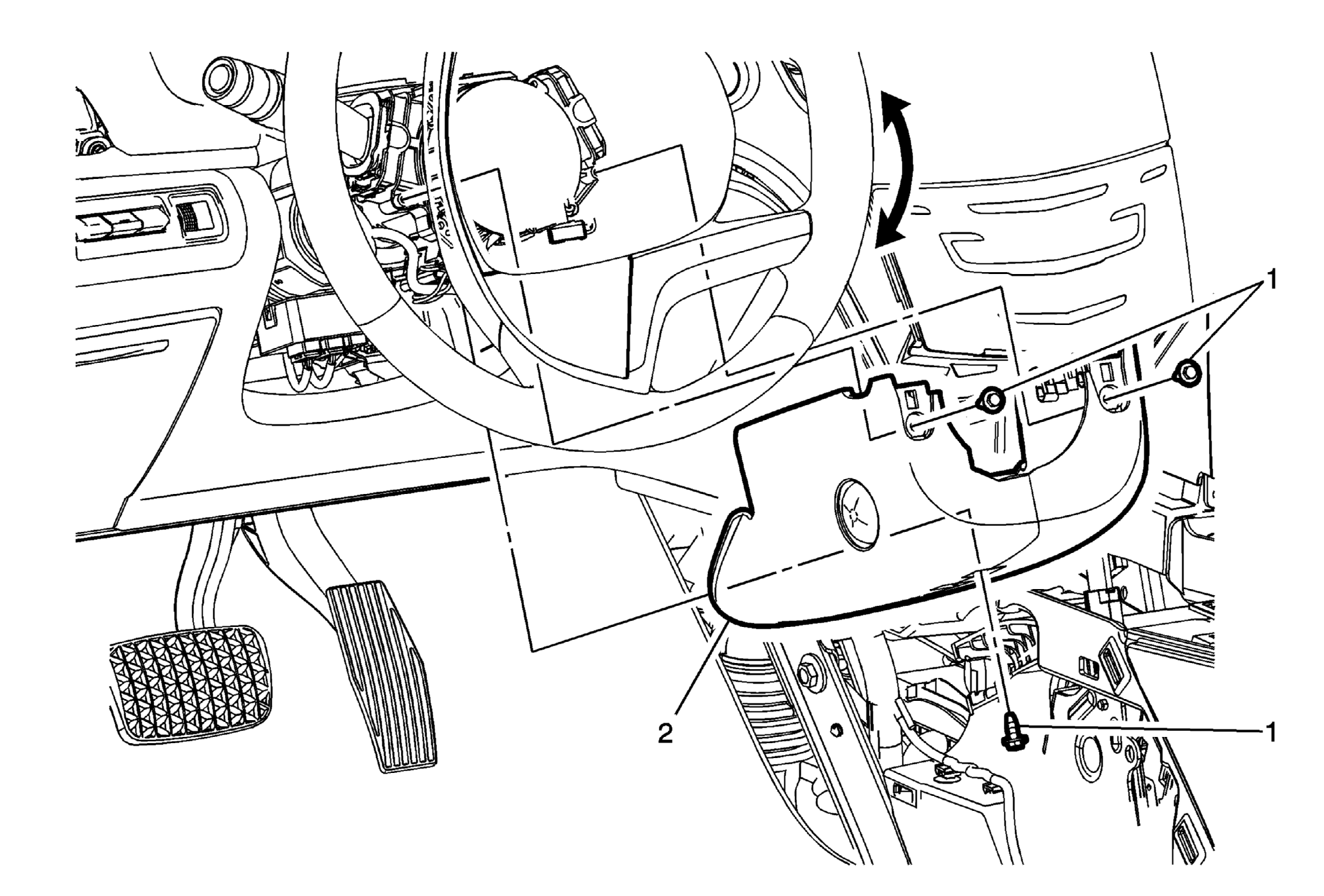

1	Steering Column Lower Trim Cover Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Steering Column Lower Trim Cover Procedure Rotate the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .

Steering Column Lower Trim Cover Fastener (Qty: 3)

CAUTION:

Tighten
1.5 N.m (13 lb in)

Steering Column Lower Trim Cover

Procedure

Rotate the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket.
Disconnect the electrical connector.
