AAM Second Design Label Location

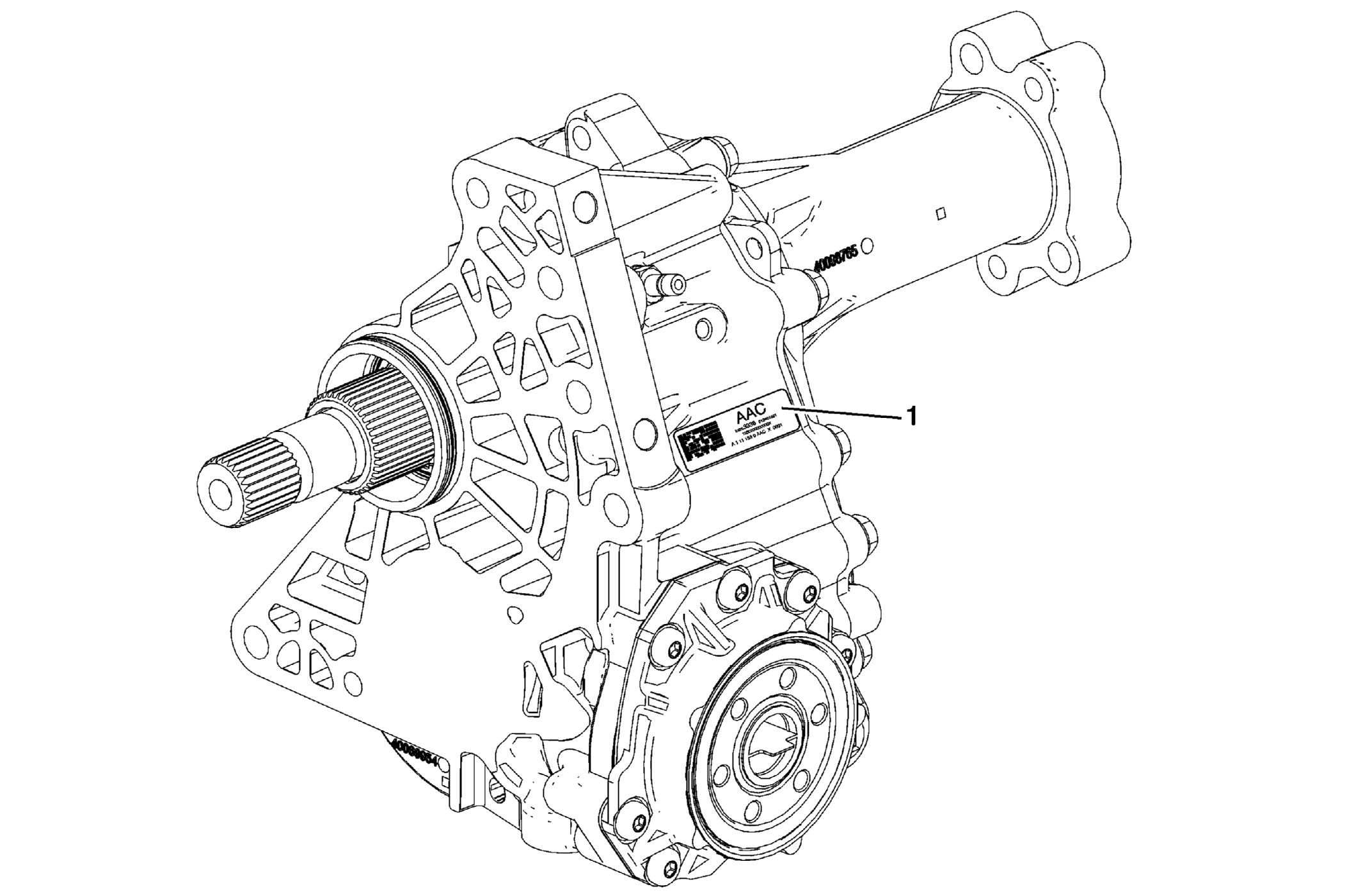

GM2909771Courtesy of GENERAL MOTORS COMPANY

The transfer case identification label (1) is located on the side of the front case half.
