Input Shaft Bearing Retainer Front Seals Installation

Special Tools

• DT-305-1/KM-305-1  Remover/Installer
• DT-49952  Installer

For equivalent regional tools, refer to Special Tools .

1. Courtesy of GENERAL MOTORS COMPANY

   NOTE:

   Install the NEW seal with the notched surface of the seal facing the installer tool.

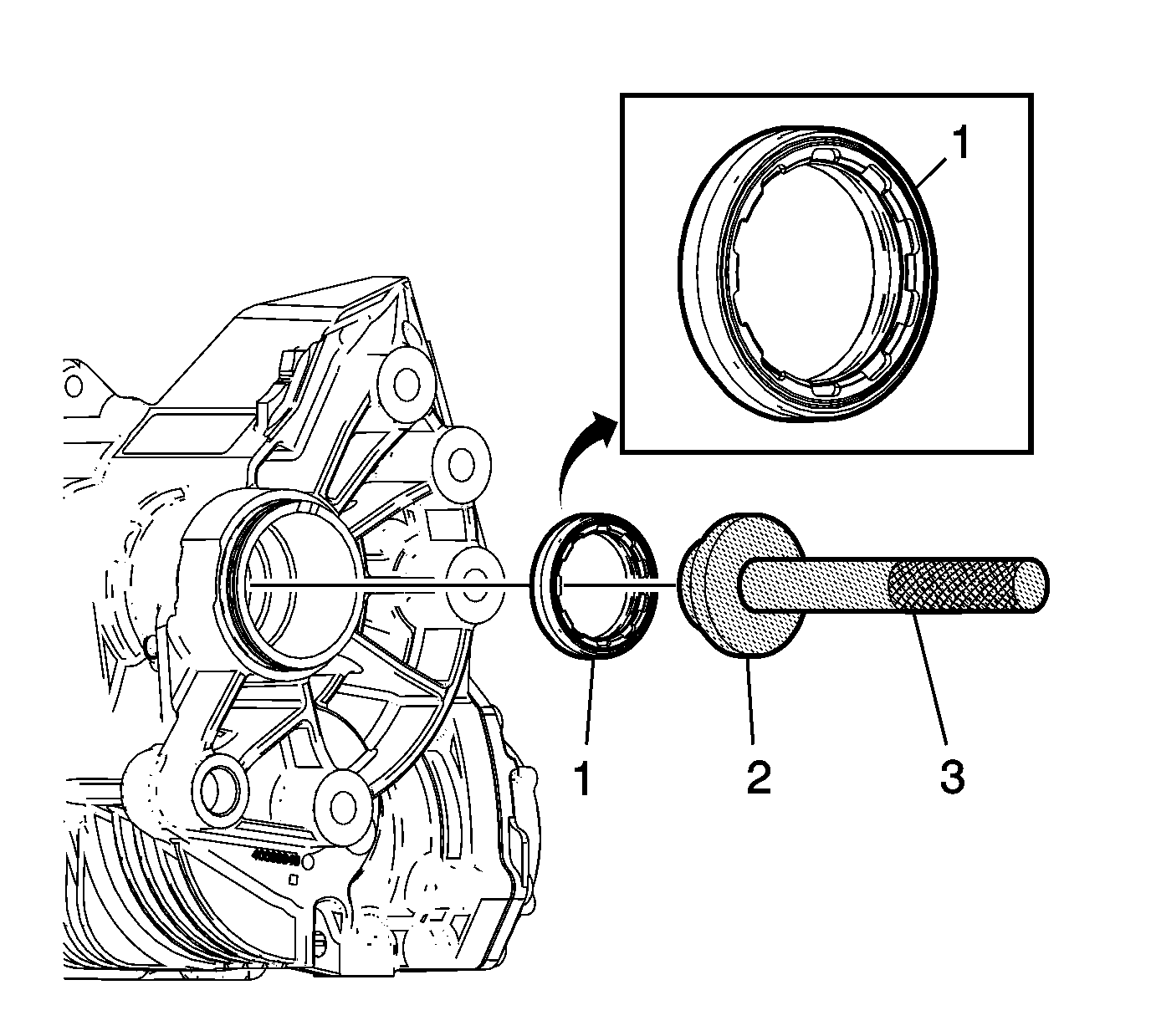

   Install the input shaft front (inner) seal (1), to the transfer case using the DT-49952  installer (2) and DT-305-1/KM-305 - 1  remover/installer (3).

2. Courtesy of GENERAL MOTORS COMPANY

   NOTE:

   Install the NEW seal with the notched surface of the seal facing the installer tool.

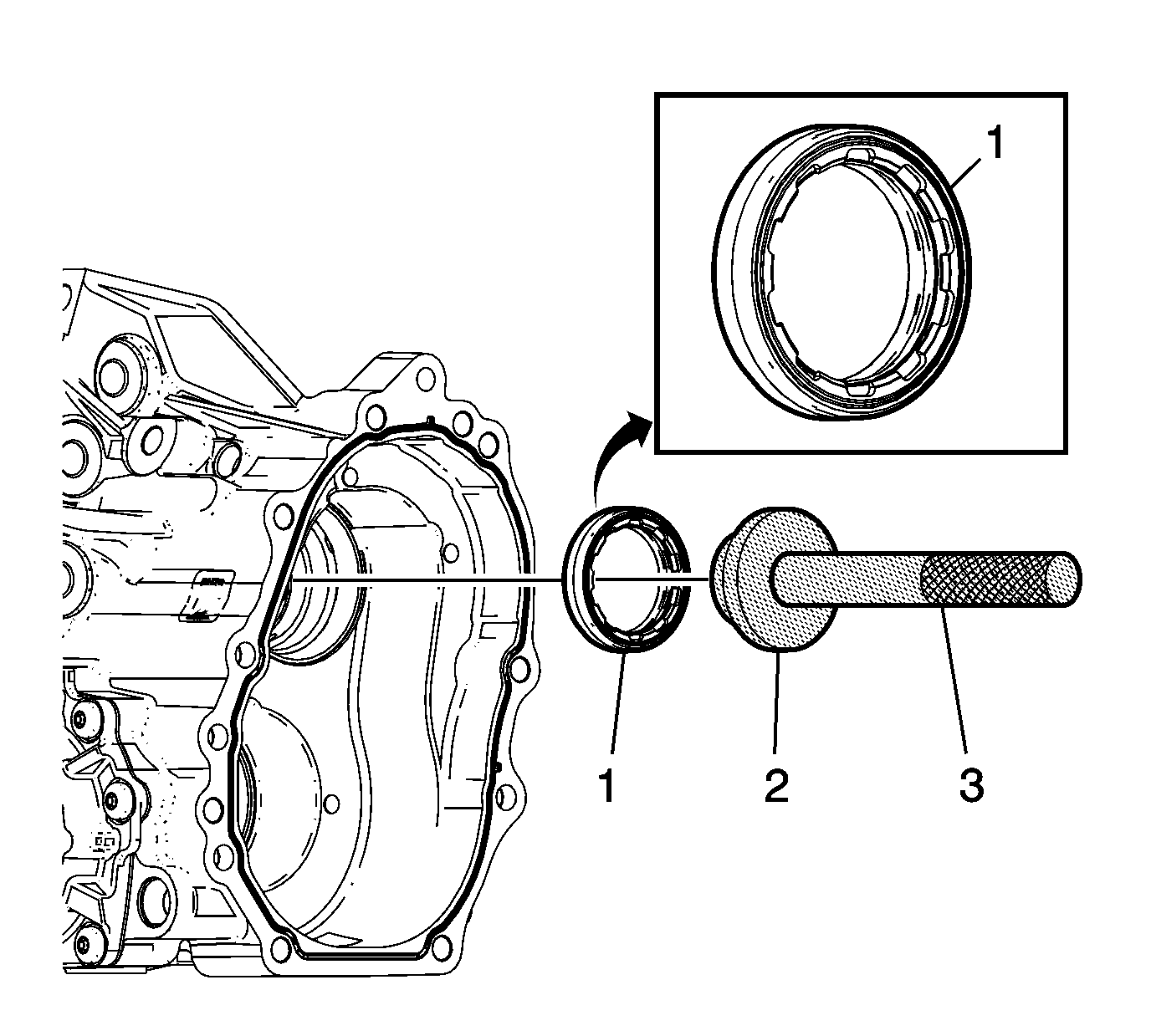

   Install the input shaft front (outer) seal (1), to the transfer case using the DT-49952  installer (2) and DT-305-1/KM-305 - 1  remover/installer (3).
