Keyless Entry - Passive and Keyless Start
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

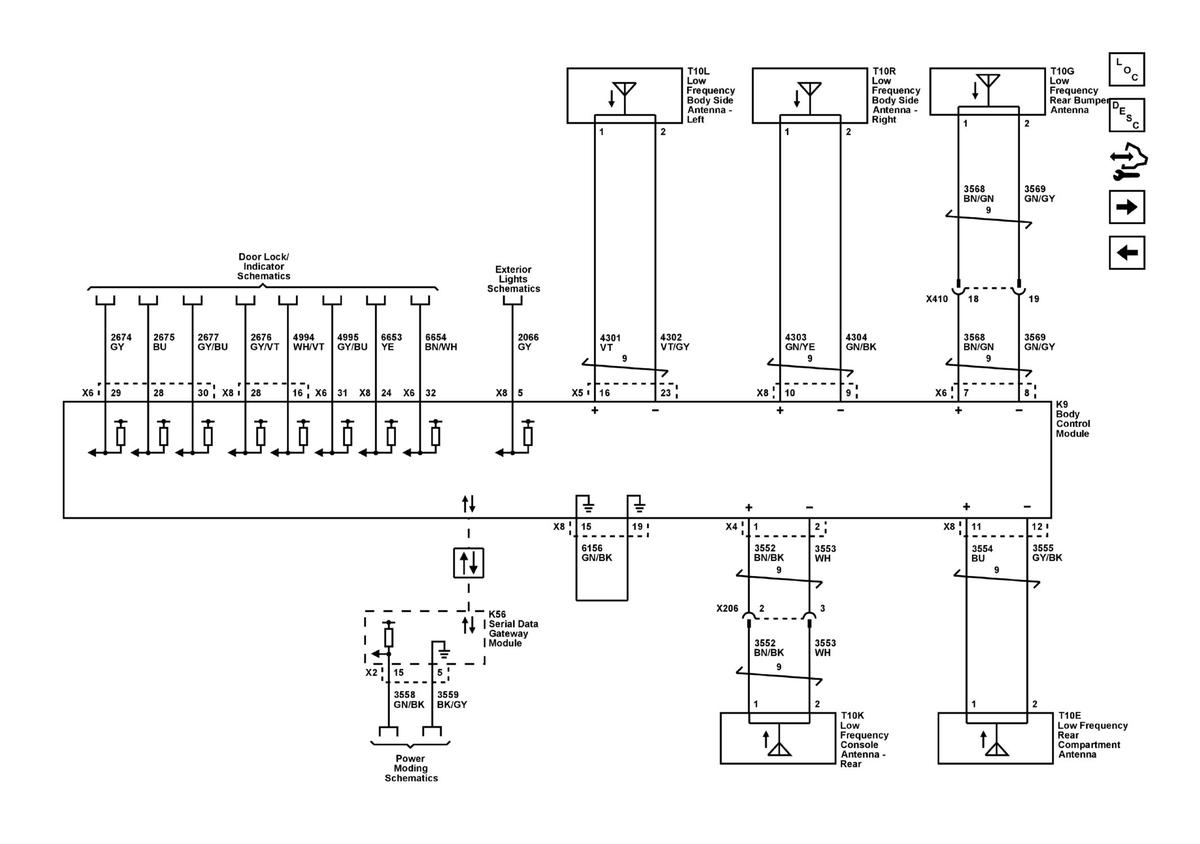

Keyless Entry - Passive and Keyless Start
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
