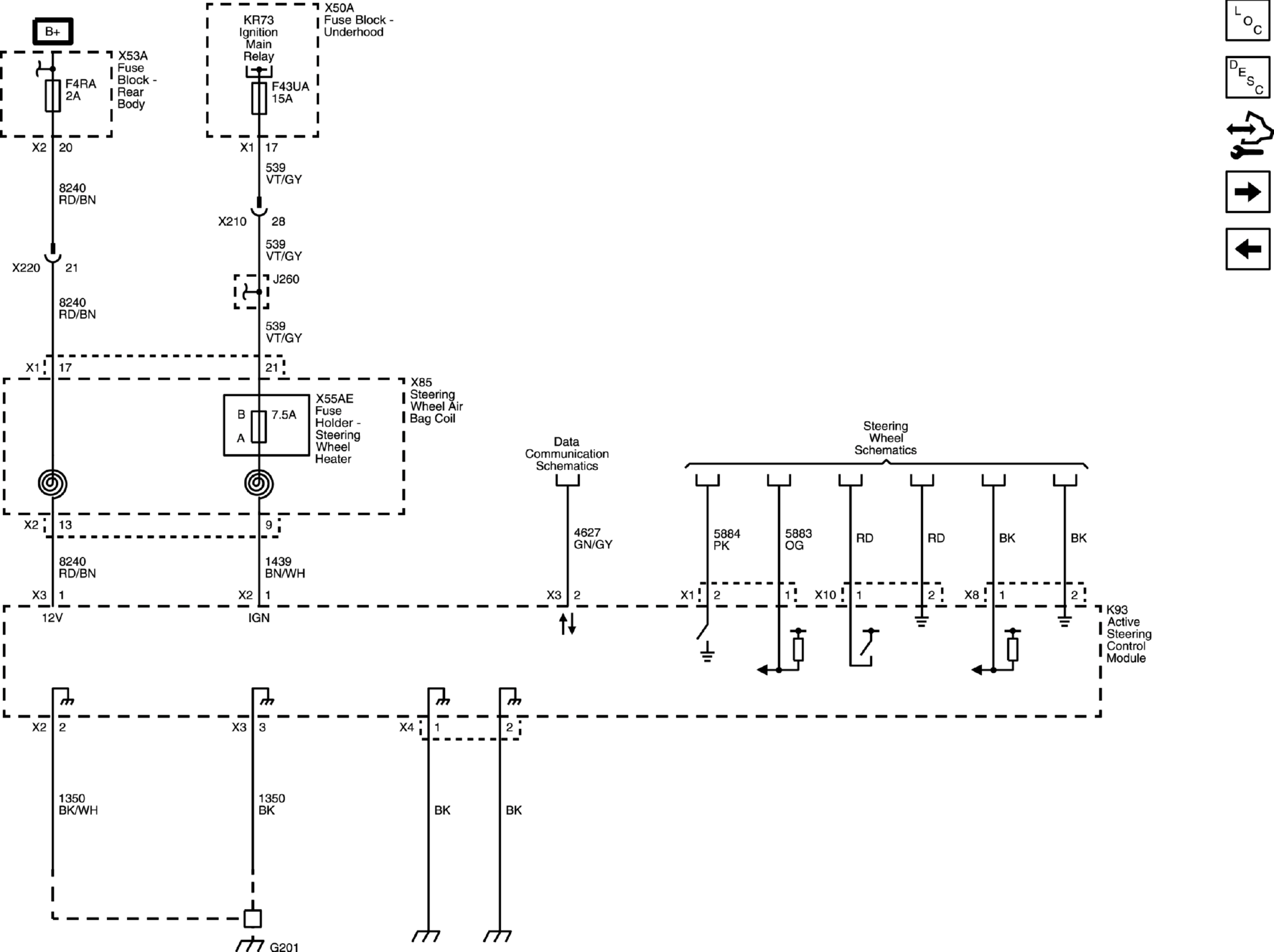

Active Steering Control Module Power, Ground, Serial Data, and Subsystem References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
