Serial Data Functional Circuit Icon

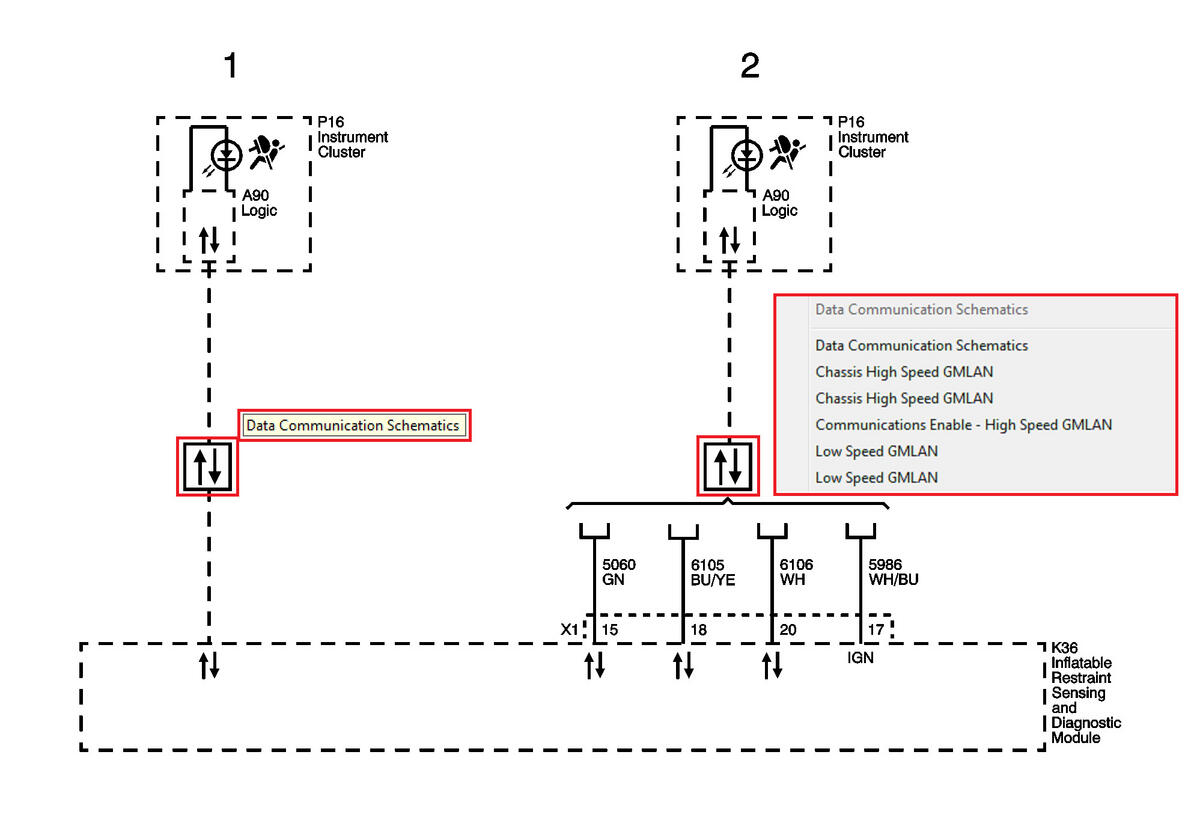

- MOUSE-OVER: DISPLAYS THE SCHEMATIC TITLE DATA COMMUNICATION SCHEMATICS.
- HOTSPOT LINK TO INFORMATION:
- WHEN A DASHED SERIAL DATA WIRE AND ICON ARE SHOWN WITHOUT ANY CIRCUIT NUMBERS, THE SERIAL DATA CIRCUIT ICON WILL LINK TO THE COMPLETE LIST OF DATA COMMUNICATION SCHEMATIC PAGES, AND NOT A SPECIFIC SCHEMATIC. THIS IS DUE TO NO CIRCUIT NUMBERS ARE SHOWN.
- WHEN A CIRCUIT WIRE(S) ARE SHOWN WITH CIRCUIT NUMBERS, A MENU WILL APPEAR WHEN THE LINK IS SELECTED. THIS MENU INCLUDES LINKS TO THE LIST OF DATA COMMUNICATION SCHEMATIC PAGES AS WELL AS LINKS TO THE INDIVIDUAL SCHEMATICS THAT CONTAIN THE SAME CIRCUIT NUMBER AS THE CIRCUIT BEING REFERENCED. ADDITIONALLY, WHEN THE TARGET SCHEMATIC IS OPENED, THE REFERENCED CIRCUIT WILL BE HIGHLIGHTED TO DRAW VISUAL ATTENTION. NOTE THAT WHEN THERE ARE MULTIPLE TARGET LINKS, THE LINKS MAY APPEAR TO BE DUPLICATE IN THE MENU, HOWEVER, THEY ARE NOT. THE EXACT SAME TITLE IS REPEATED FOR EACH CIRCUIT NUMBER THAT IS POINTING TO THE SAME TARGET SCHEMATIC. A FUTURE UPDATE WILL INCLUDE THE CIRCUIT NUMBER BEFORE THE LINK DESCRIPTION TO FURTHER ASSIST IN LINK SELECTION.
