Front Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

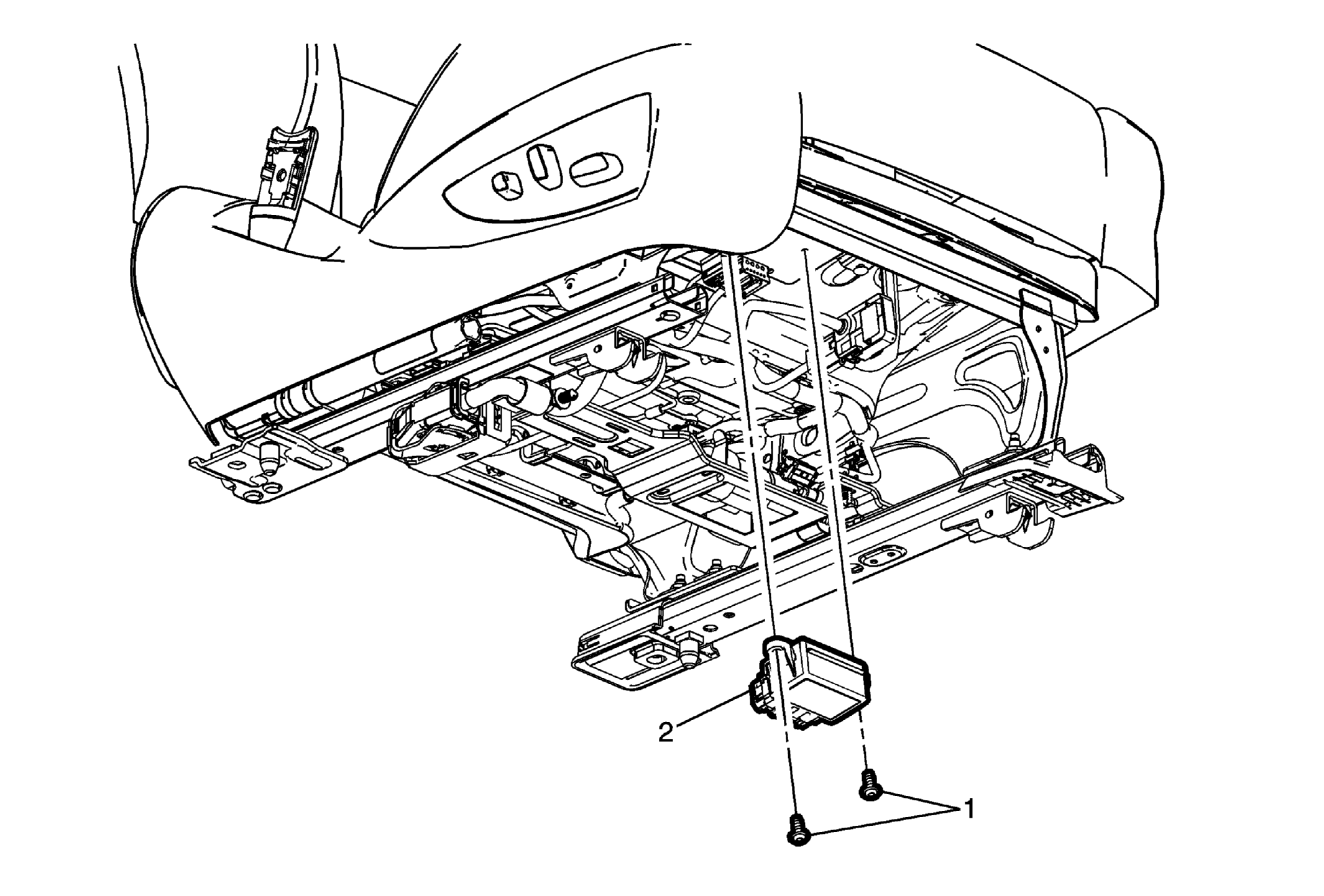

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Front Seat Removal and Installation
1	Front Seat Heater Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Seat Heater Control Module Procedure Disconnect the electrical connector. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat. Refer to Front Seat Removal and Installation

Front Seat Heater Control Module Fastener (Qty: 2)

CAUTION:

Front Seat Heater Control Module

Procedure
