Audio/Video Interface Module Replacement
WARNING: This page is about a different car, the 2020 Cadillac CT6. However, it is still accessible from the selected car via links, so may be relevant.

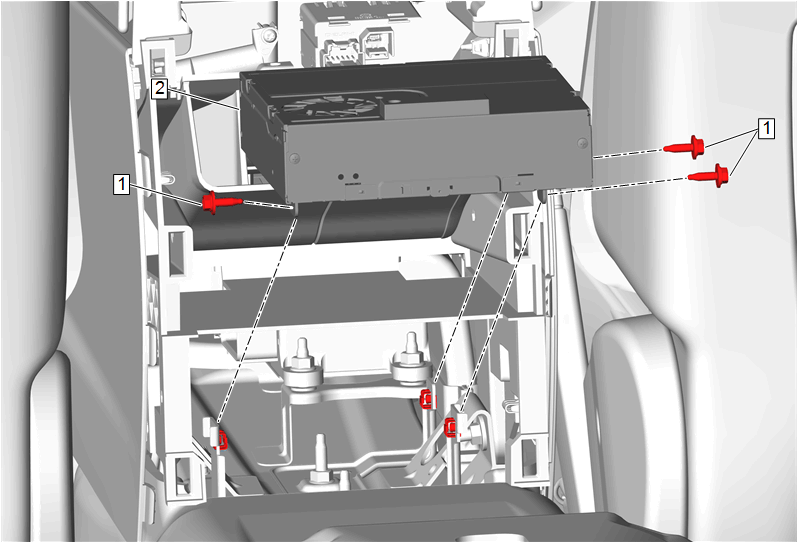

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Rear Trim Panel Replacement |
|
| 1 | Video Player Bolt [3x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Audio/Video Interface Module Procedure Disconnect the electrical connectors. |
