Electronic Suspension Control Module Replacement
WARNING: This page is about a different car, the 2020 Cadillac CT6. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the rear compartment floor stowage compartment cover. Rear Compartment Floor Stowage Compartment Cover Replacement
|
| 1 |

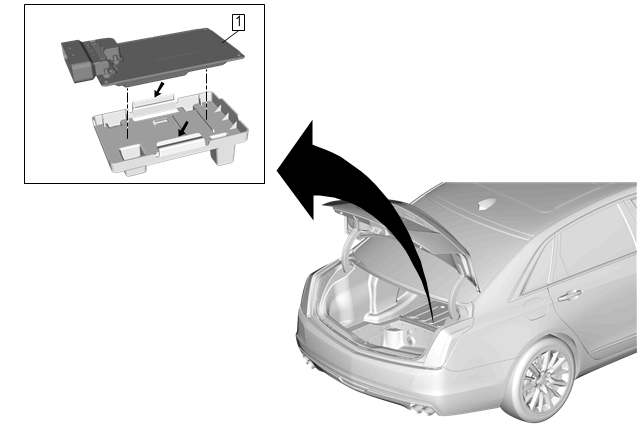

Electronic Suspension Control Module Procedure
- Disconnect the electrical connector.
- Remove the electronic suspension control module by releasing it from the integral tabs as indicated on the electronic suspension control module bracket.
- Program the electronic suspension control module. Control Module References
|
