Automatic Level Control Air Compressor Inlet Tube Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 GMC Yukon XL, 2020 GMC Yukon, 2020 Chevrolet Tahoe, 2020 Chevrolet Suburban, and 2020 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

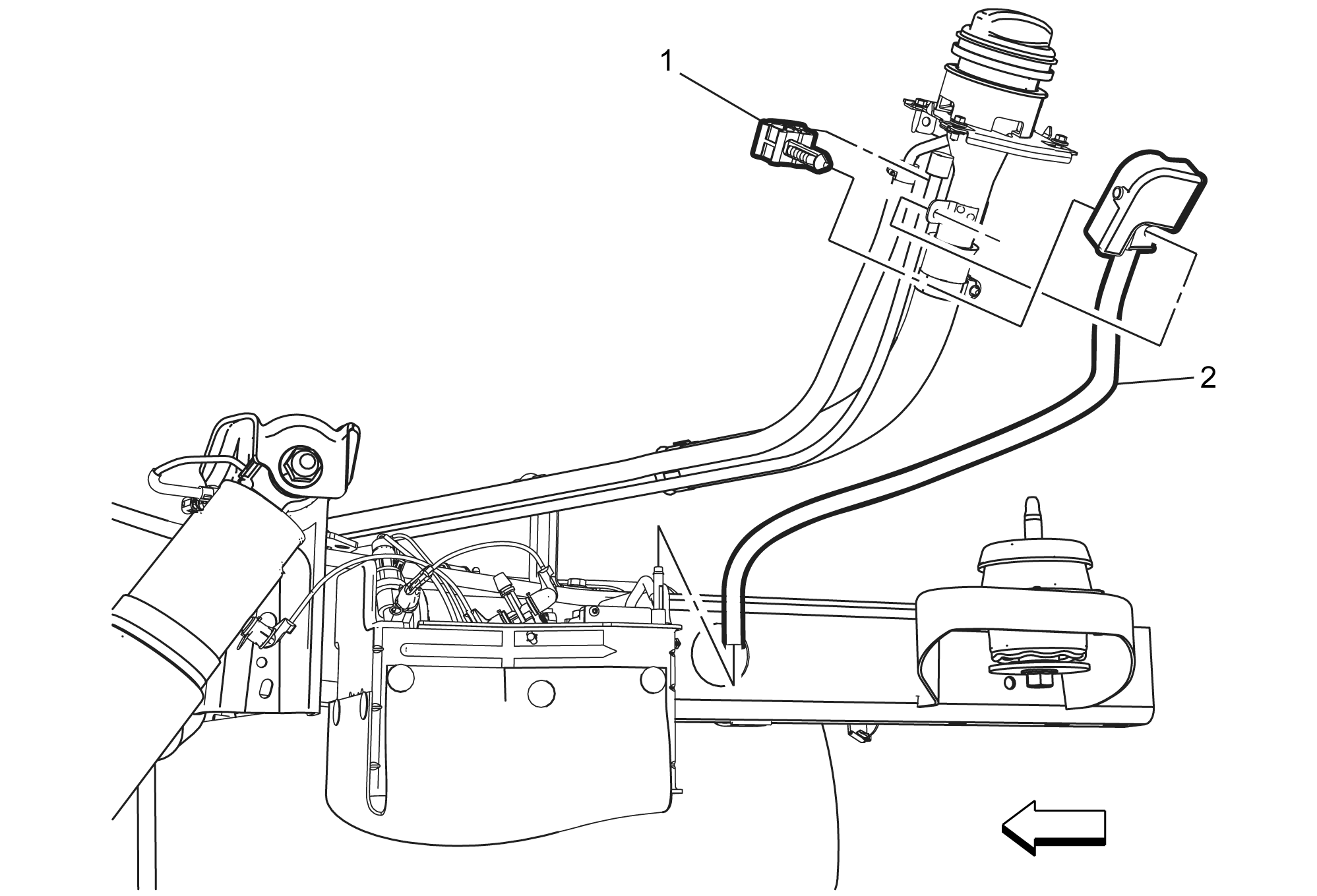

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Automatic Level Control Inlet Tube Clip
NOTE:
Replace the clip after removing. |
| 2 | Automatic Level Control Inlet Tube
NOTE:
Clean the area around the inlet tube to compressor fitting, so that debris does not enter the compressor. |
