Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

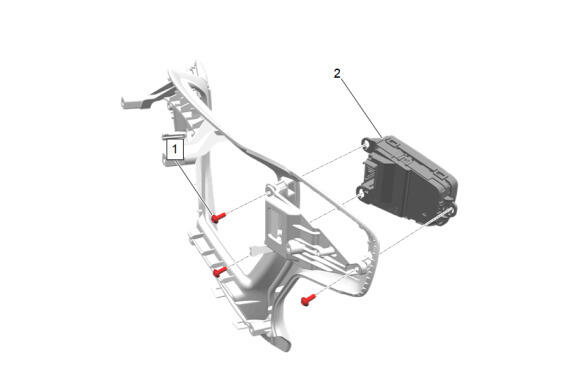

  1. GM5892336Courtesy of GENERAL MOTORS COMPANY

    Cruise Control Switch (2) - Install

    2. CAUTION:

    Fastener Caution .

  2. Steering Wheel Bolt (1) @ Cruise Control Switch - Install and tighten [3x] - Fastener Specifications

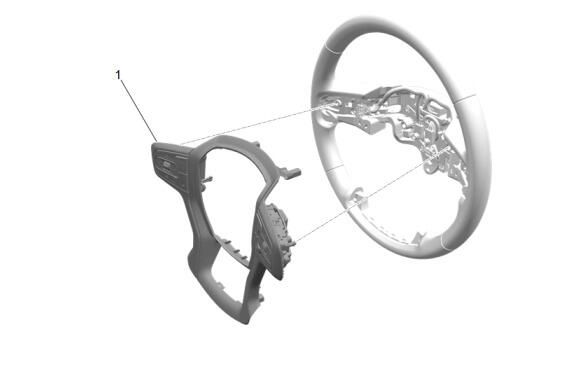

  3. GM5892334Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Steering Wheel Trim Spoke Cover Applique (1) - Install

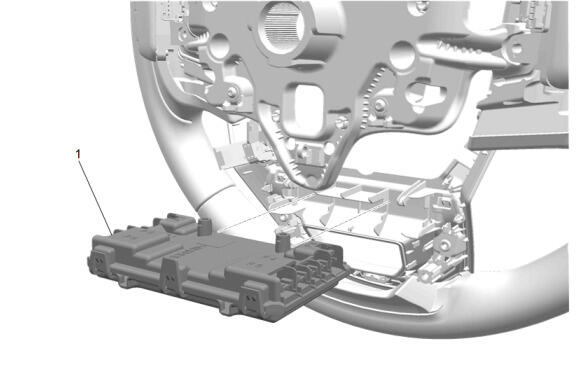

  5. GM6087928Courtesy of GENERAL MOTORS COMPANY

    Install the driver monitoring module (1) and ensure module is secured by the retainer clips.

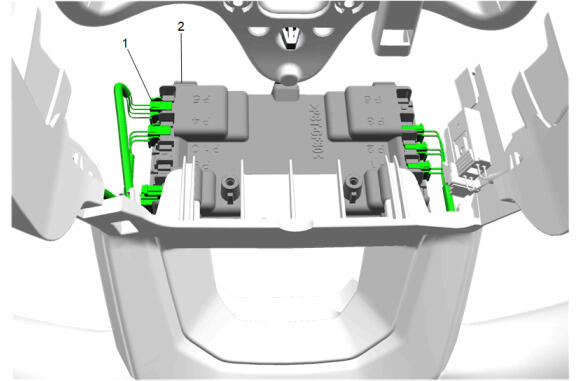

  6. GM6087924Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (1)

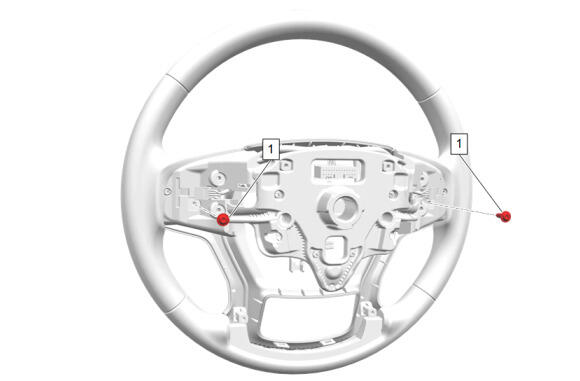

  7. GM5892333Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications

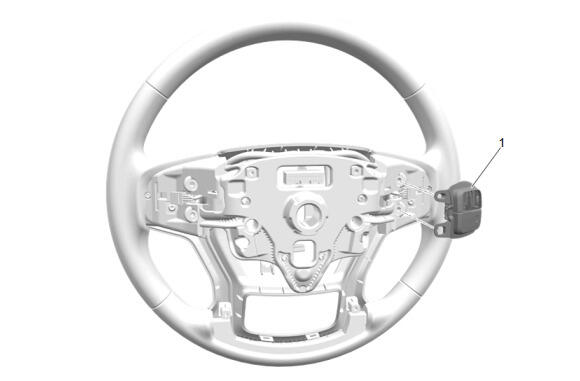

  8. GM5892331Courtesy of GENERAL MOTORS COMPANY

    Radio Favorites Switch (1) - Install

  9. Connect the electrical connector.

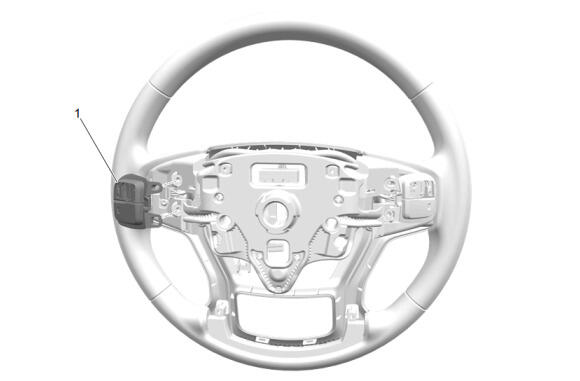

  10. GM5892053Courtesy of GENERAL MOTORS COMPANY

    Radio Volume Switch (1) - Install

  11. Connect the electrical connector.

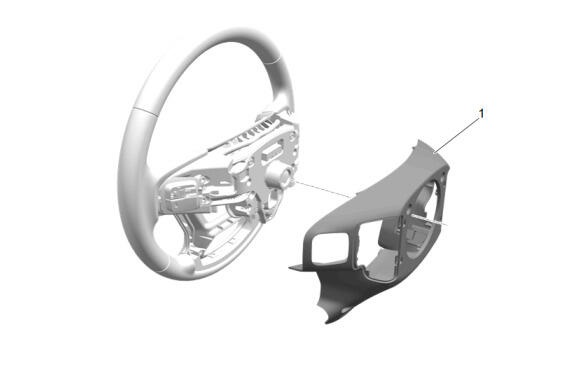

  12. GM5891033Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (1) - Install

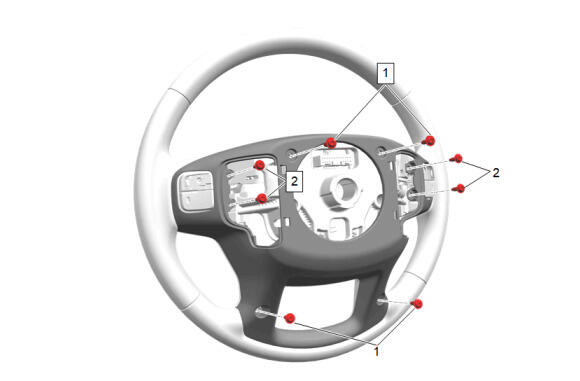

  13. GM5891030Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (2) @ Steering Wheel Shroud - Install and tighten [4x] - Fastener Specifications

  14. Steering Wheel Spoke Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
  15. GM5810856Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  16. Steering Wheel (1) - Install
  17. GM5810855Courtesy of GENERAL MOTORS COMPANY

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  18. Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
  19. GM5810539Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (3)

  20. Install any connector position assurance (CPA) devices or secondary locks.
    21. WARNING:

    After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.

  21. Steering Wheel Airbag (2) - Install
  22. Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
  23. GM5810457Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the left and right steering wheel airbag access hole covers (1).

  24. Enable the SIR System. SIR Disabling and Enabling
