Back of Front Fascia Components

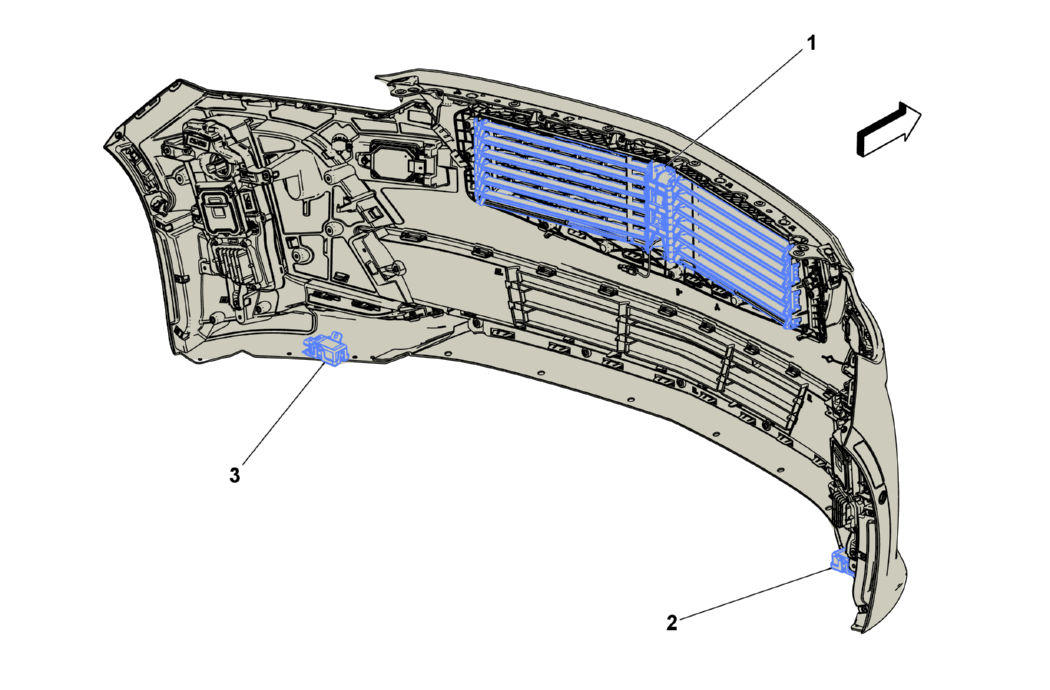

GM5326485Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Back of Front Fascia Components

Component Name Callout
M96 Active Grille Air Shutter Actuator M96 Active Grille Air Shutter Actuator (VTI) 1
B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 (BOP) 2
B342A UHF Low Energy Remote Control Access Sensor Transceiver 1 B342A UHF Low Energy Remote Control Access Sensor Transceiver 1 (BOP) 3
