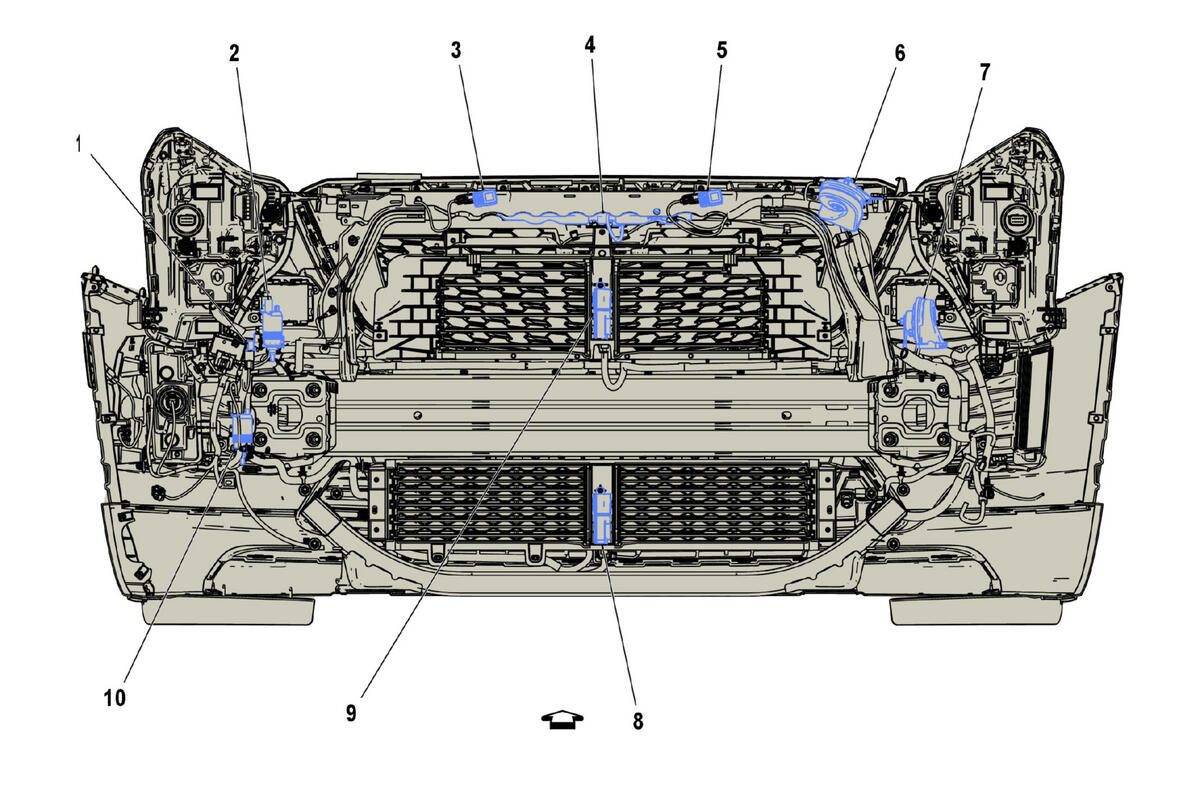

Behind Front Fascia Components
Behind Front Fascia Components
| Components |
|---|
| 1. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch |
| 2. G19 Rear Window Washer Pump G19 Rear Window Washer Pump |
| 3. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
| 4. B55 Engine Hood Switch B55 Engine Hood Switch |
| 5. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| 6. P12R Horn - Right P12R Horn - Right |
| 7. P12L Horn - Left P12L Horn - Left |
| 8. M96A Active Grille Air Shutter 1 Actuator M96A Active Grille Air Shutter 1 Actuator (WMI) |
| 9. M96B Active Grille Air Shutter 2 Actuator M96B Active Grille Air Shutter 2 Actuator (WMI) |
| 10. G24 Windshield Washer Pump G24 Windshield Washer Pump |
