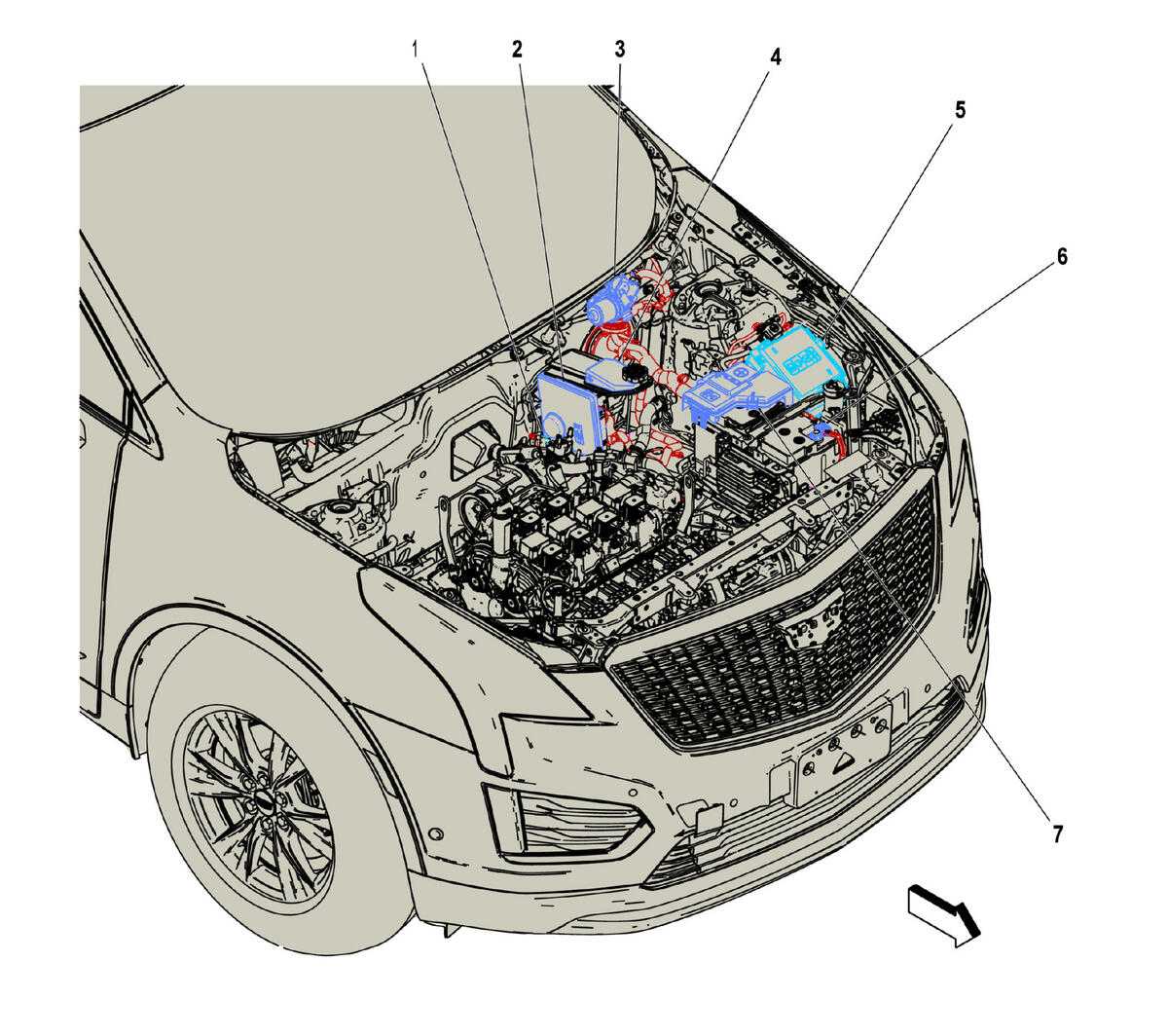

Left Side of Engine Compartment Components

Courtesy of GENERAL MOTORS COMPANY

Components
1. B34D Engine Coolant Temperature Sensor 4 (LSY) B34D Engine Coolant Temperature Sensor 4 (LSY)
2. K160 Brake System Control Module (LSY) K160 Brake System Control Module
3. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
4. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
5. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood X5 .
6. B110 Battery Sensor Module B110 Battery Sensor Module X1 , or B110 Battery Sensor Module X2
7. X50D Fuse Block - Battery X50D Fuse Block - Battery X1 , or X50D Fuse Block - Battery X10 , or X50D Fuse Block - Battery X2 , or X50D Fuse Block - Battery X3 (LGX) , or X50D Fuse Block - Battery X3 (LSY) , or X50D Fuse Block - Battery X4 , or X50D Fuse Block - Battery X5 , or X50D Fuse Block - Battery X6 , or X50D Fuse Block - Battery X7 (LGX) , or X50D Fuse Block - Battery X7 (LSY) , or X50D Fuse Block - Battery X8
