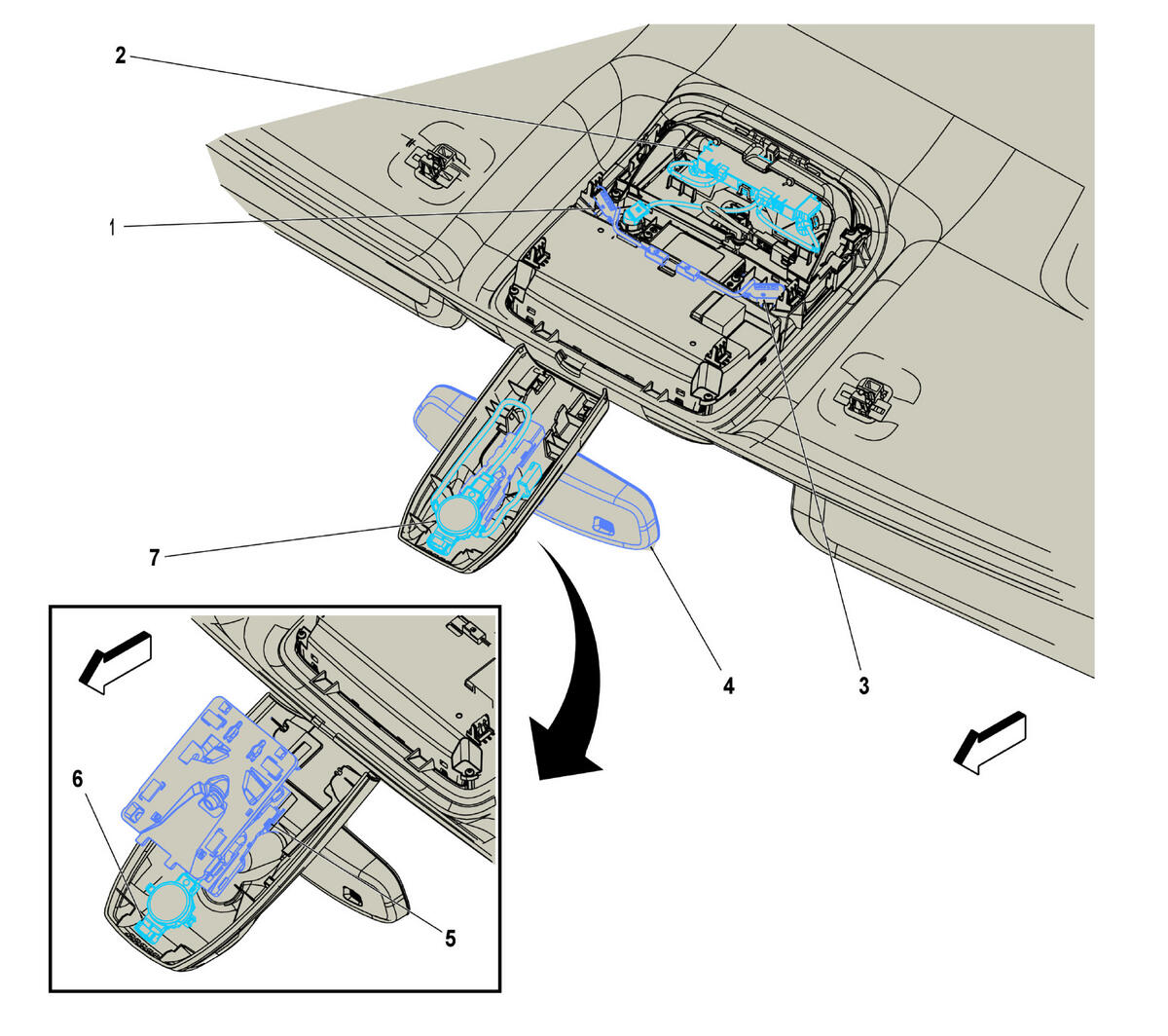

Above Center of Windshield Components (without C3U)

GM5428798Courtesy of GENERAL MOTORS COMPANY
Above Center of Windshield Components (without C3U)

Components
1. B24RF Mobile Telephone Microphone - Right Front
B24RF Mobile Telephone Microphone - Right Front
2. B165 Content Theft Deterrent Sensor Module
B165 Content Theft Deterrent Sensor Module
3. B24LF Mobile Telephone Microphone - Left Front
B24LF Mobile Telephone Microphone - Left Front
4. A10 Inside Rearview Mirror
A10 Inside Rearview Mirror X1 , or
A10 Inside Rearview Mirror X2
5. B174W Frontview Camera - Windshield
B174W Frontview Camera - Windshield
6. B200 Rain Sensor Module
B200 Rain Sensor Module
7. B160 Windshield Temperature and Inside Moisture Sensor
B160 Windshield Temperature and Inside Moisture Sensor
