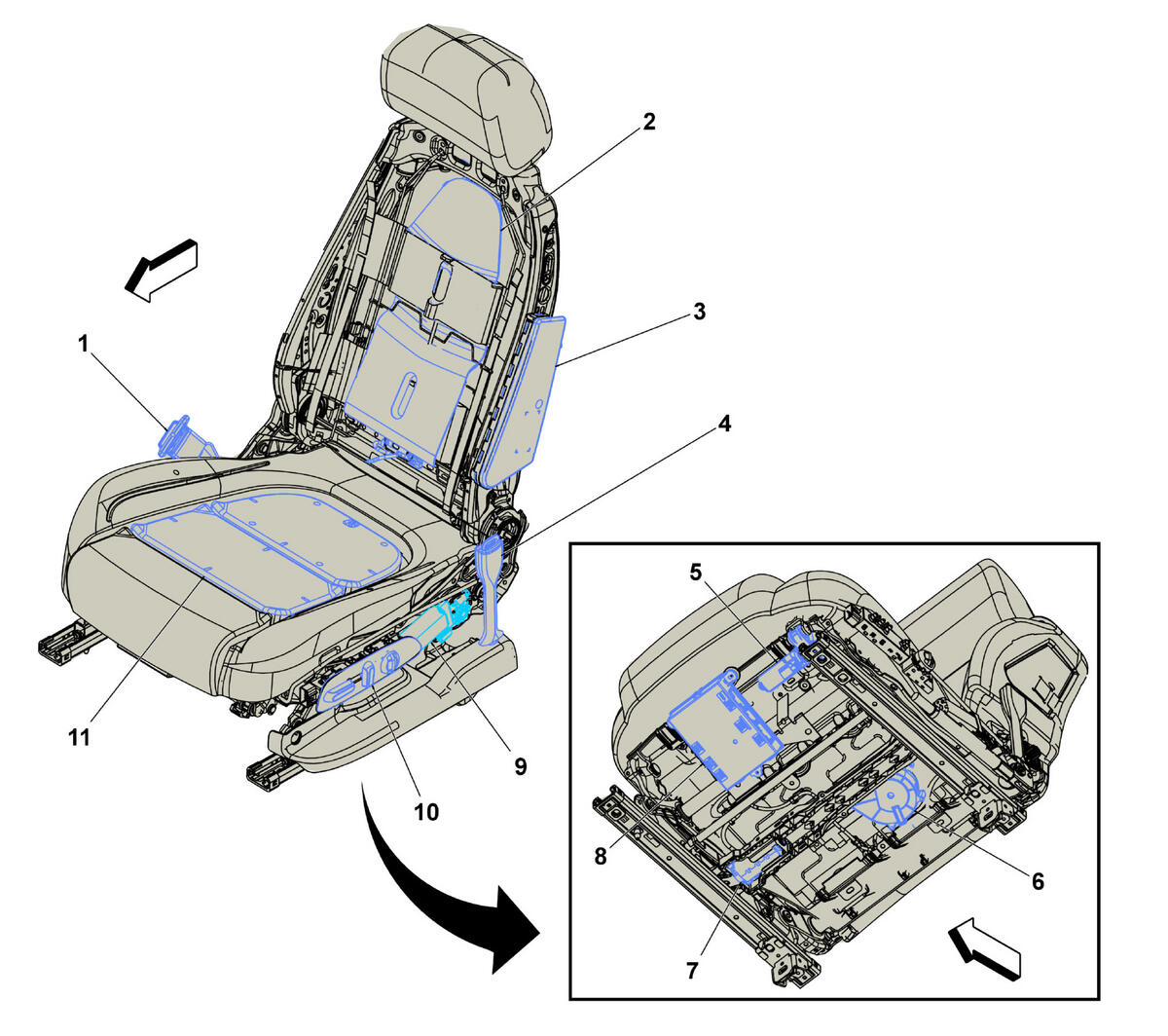

Driver Seat Components

Courtesy of GENERAL MOTORS COMPANY

Components
1. B153D Seat Belt Buckle - Driver
2. E14A Seat Heating Element - Driver Back E14A Seat Heating Element - Driver Back
3. F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver
4. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver
5. M50D Seat Front Vertical Motor - Driver M50D Seat Front Vertical Motor - Driver
6. M73C Seat Blower Motor - Driver Cushion M73C Seat Blower Motor - Driver Cushion (KU9)
7. M51D Seat Horizontal Motor - Driver M51D Seat Horizontal Motor - Driver
8. K40 Seat Memory Control Module K40 Seat Memory Control Module X1 (AAB) , or K40 Seat Memory Control Module X2 (AAB) , or K40 Seat Memory Control Module X3 (AAB) , or K40 Seat Memory Control Module X5 (AAB) , or K40 Seat Memory Control Module X6 (AAB) .
9. M55D Seat Rear Vertical Motor - Driver M55D Seat Rear Vertical Motor - Driver
10. S64D Seat Adjuster Switch - Driver S64D Seat Adjuster Switch - Driver X1 , or S64D Seat Adjuster Switch - Driver X2
11. E14B Seat Heating Element - Driver Cushion E14B Seat Heating Element - Driver Cushion
